R253 Tension Load Cell

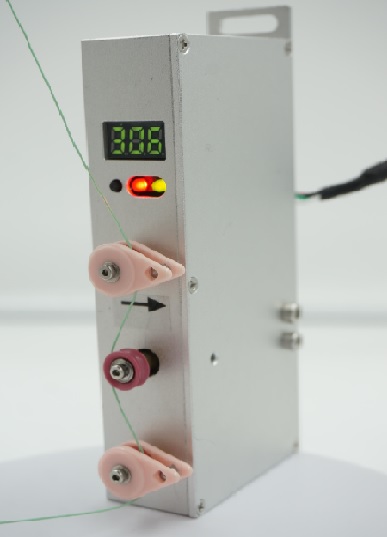

It is suitable for the detection and control of wire tension, with strong anti-eccentricity.

Material:
shape:
Quantity:
  • R253
  • Right
  • Tension
  • 1N~100N
  • IP65
Product Description



Dimension


R253-2





Parameters


Specifications

Technique

Capacity

100g, 200g, 500g, 1kg, 2kg

Sensitivity

1.0 ± 10% mV / V (300g, 500g)

2.0 ± 10% mV / V (1 ~ 5kg)

Zero Balance

± 2% F.S.

Non-linearity

0.05% F.S.

Hysteresis

0.05% F.S.

Repetition

0.05% F.S.

Creep (30 min)

0.03% F.S.

Temp. Effect on sensitivity (TKc)

0.03 % F.S. / 10 ℃

Temp. Effect on zero balance (TKo)

0.03 % F.S. / 10 ℃

Input Resistance

380 ± 40 Ω

Output Resistance

380 ± 40 Ω

Insulating Resistance

≥5000 MΩ / 100VDC

Excitation Voltage

5 ~ 15 V

Max. Excitation Voltage

20 V

Compensation Range

-10 ~ 40 ℃

Service Temperature Range

-25 ~ 70 ℃

Limit load (E L)

150% F.S.

Breaking load (E d)

300% F.S.

Cable size

φ4 × 400 mm

Weight (G), approx.

0.1 kg

Material (Measuring element)

Aluminum Alloy

IP Class

IP65







Features and applications


Aluminum alloy material

High precision and strong anti-eccentricity

Easy to install, protection grade: IP 65

Mainly used for the detection and control of wire tension





Load Direction


r253-3




Wiring Code


Wiring regulations



Download    R253.pdf
