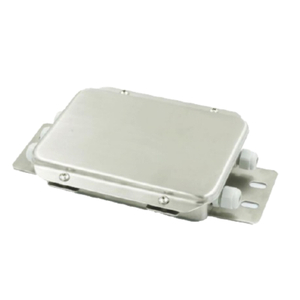

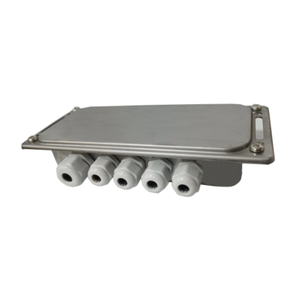

T086 Junction Box

Made of stainless steel, strong and durable, good anti-interference
Use special waterproof sealing joint
Connection of four, six and eight sensor signal cables

Quantity:
  • T086
  • Right
  • AD Transmitter
  • IP68
Product Description


Dimension


T086 installation dimensions








Parameters

Specifications

Technique

Regulating methods

Signal output adjustment

Weight (G), approx.

1.25KG

Maximum permissible voltage

18V

Material

stainless steel

Service Temperature Range

-10 ~ 50 ℃

Storage Temperature Range

-20 ~ 60 ℃

IP Class

IP68

Wiring Instruction

+ EXC sensor excitation voltage is positive

+ SIG sensor signal positive

SHIELD shield

-EXC sensor excitation power supply is negative

-SIG sensor signal is negative





Features and Applications


Stainless steel material, durable, good anti-interference


Use professional waterproof sealing joints


The compensation adjustment section adopts imported multi-turn potentiometer with high stability


Cover plate has waterproof rubber gasket


Work site with harsh environmental conditions


Four, six, eight sensing and calculation


Prevent damage of sensors and surge signals to sensors


Signal adjustment of eccentric load performance of electronic scale








Download    T086B .pdf
