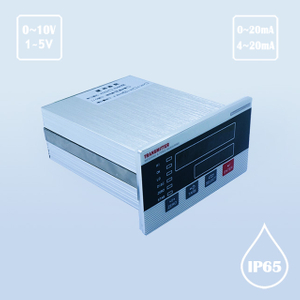

T089 Sensor Indicator Control

Convert force signal into digital communication signal, standard analog output signal and simple control occasions.
Digital communication interface can choose RS485 or RS232, ModBus-RTU protocol

Quantity:
  • T089
  • Right
  • AD Transmitter
  • IP65
Product Description



Dimension


T089 Installation dimensions








Parameters

Specifications

Technique

Display

6 digits 0.28 inch LED display

Readability

1/100000

Outputlinearity

< 0.002%

Accuracy

Better than 0.01%

A / D conversion speed

200 times / sec

Sensitivity

-3.6 ~ +3.6 mV / V

Limit load

3 x4 350Ω sensors

Temp. Effect on out

≤10 ppm / ℃

Temp. Effect on zero balance (TKo)

≤10 ppm / ℃

Power supply

24 ± 5 VDC

Excitation Voltage

5 VDC

Service Temperature Range

-10 ~ 40 ℃

Calibration

Weight calibration, remote calibration

Power consumption

≤6W





Features and Applications


Used for the occasions where the force measurement signal needs to be converted into digital communication signal, standard analog output signal and simple control


Standard configuration of a serial port RS485 or RS232, support Modbus-RTU protocol


6-digit LED digital tube with 7.1mm height and 4 status indicators


The controller has the function of judging the upper limit, middle limit and lower limit


Optional up to 8 outputs, 8 inputs


5-level dynamic digital filtering, 200 times / second value comparison speed


It can output the drive controller through the host computer, and can partially replace the PLC


Standard industrial rail installation (DIN)


Suitable for fixed value control system, check weighing scale, packaging scale, process force measurement and control








Download    T089 .pdf
