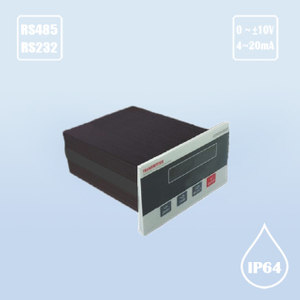

T094H Sensor Indicator Control

Convert force signal into digital communication signal, standard analog output signal and simple control occasions;
Optional analog signal: 0 ~ 20 mA, 0 ~ 10V, 1 ~ 5 V;
Digital communication can choose RS485 or RS232;
Availability:
Quantity:
  • T094H

  • Right

  • AD Transmitter

  • IP65

Product Description



Dimension





Parameters

Specifications

Technique

Display

Dual row 6 digit LED display

Read

1 in 90,000

linearity

<0.002%

Accuracy

Better than 0.01%

A / D convert speed

≤400 times / second

Sensitivity

-3.6 ~ + 3.6 mV / V

Limit load (E L)

1 ~ 8 350 Ω sensors

Output

± 10V / 0 ~ 10V / 4 ~ 20mA

Temp. Effect on out

≤10ppm / ℃

Temp. Effect on zero balance (TKo)

≤10μV / ℃

Excitation Voltage

5VDC

Power supply

24 ± 5VDC

Power waste

≤10W

Operating Temperature Range

-20 ~ 70 ℃

Weight Approx.

0.5 KG

Material

Aluminum alloy

IP Class

IP65






Features and Applications

It is used in occasions where the force measurement signal needs to be converted into digital communication signal, standard analog output signal and simple control


L Analog output signal selectable 0-20mA, 4-20mA, 0-10V, 1-5V, digital communication interface can choose RS485 or RS232


The double-row 6-bit LED digital tube displays real-time measured value, peak value, output current value, and I / O status information


Lifting controller with upper limit, middle limit, lower limit limit judgment function


LI / O has 4 inputs and 6 outputs, and the input and output ports can be customized


L can drive the controller output through the host computer, can partially replace the PLC


The power supply of the controller is powered by DC24V, with a voltage width of ± 5V, which is more safe and stable


Rising hole type panel installation, the panel area is only 110 mm (width) × 62 mm (height)







Download    T094H .pdf
