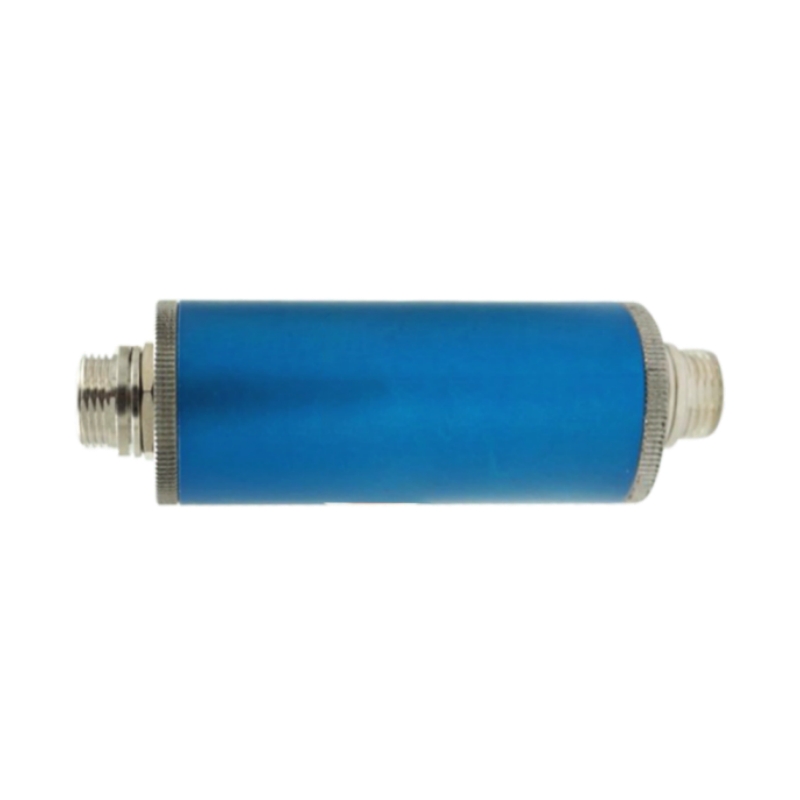

T098D Sensor Indicator Control

Convert force signal into digital communication signal, standard analog output signal and simple control occasions.Analog output signal can choose 4 ~ 20mA, 0 ~ ± 10VDigital communication interface can choose RS485 or RS232, ModBus-RTU protocol

Quantity:
  • T098D
  • Right
  • AD Transmitter
  • IP64
Product Description



Dimension


T098D installation drawings







Parameters

Specifications

Technical indicators / Technique

Display

Low power LED display

Switchin

switching: 2switching input,

3 switching output (OC)

Output linearity

< 0.01%

Accuracy

Better than 0.01%

A / D conversion speed

> 100-400 times / second

Sensitivity

± 30 mV / V

Limit load

1 ~ 8 350Ω sensors

Temp. Effect on out

≤10 ppm / ℃

Temp. Effect on zero balance (TKo)

≤10 μ V / ℃

Power supply

24 ± 10% VDC

Excitation Voltage

5 VDC

Service Temperature Range

-40 ~ 85 ℃

Weight (G), approx.

0.5 Kg

Power consumption

≤8W





Features and Applications


Used for the occasions where the force measurement signal needs to be converted into digital communication signal, standard analog output signal and simple control


Analog output signal can be selected 4 ~ 20mA, 0 ~ ± 10 V

Digital communication interface can choose RS485 or RS232


Multiple filter debugging modes make it easier to obtain the target value


The power supply and signal are all isolated and processed, with strong anti-interference ability, and more stable data collection and output


Comparable output, peak capture, peak comparison output


Non-weight calibration, TEDS automatic calibration


High-speed sampling (up to 1600 times), fast display speed


The controller power supply adopts isolated DC24V ± 10%, the power supply is more safe and stable


35mm standard industrial rail installation









Download    T098D.pdf
