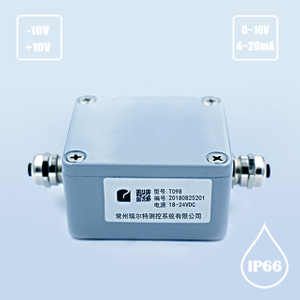

T098H Sensor Amplifier

Power and signal isolation, strong anti-interference ability
Adapt to multiple sensitivity sensors, wide adjustable range of zero point

Quantity:
  • T098H
  • Right
  • AD Transmitter
  • IP66
Product Description


Installation size


T098H Installation dimensions






Parameter



Specifications

Technique

Output specification

± 10V, 4 ~ 20mA, 0 ~ 20mA

Output linear

Better than 0.01%

Comprehensive accuracy

Better than 0.01%

Co.of temperature

65000 division

Temperature load

± 25 ppm / ℃

Connect load cell

1~4 sensors

Excitation Voltage

10 VDC

Output Resistance

Voltage load ≥2KΩ

Power supply

16 ~ 32 VDC

Power consumption

≤3 W

Service Temperature Range

-20 ~ 60 ℃

Weight (G), approx.

0.45 kg

Material (Measuring element)

Aluminum Alloy

IP Class

IP 66





Features and Applications


Integrate multiple output signals ± 10V, 4-20mA, 0 ~ 20mA


Power and signal isolation, strong anti-interference ability


High precision, screened precision op amps, precision resistors


Multi-level active filter processing, stable and accurate output signal


Adapt to multiple sensitivity sensors, wide adjustable range of zero point







Download    T098H.pdf
