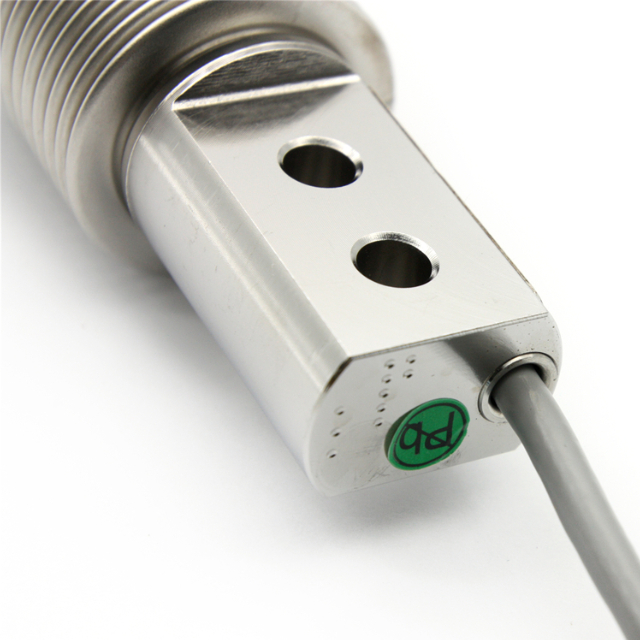

T701 Bending Beam Load Cell

Widely used in Packaging scales, hopper scales, various industrial weighing systems, etc.

Material:
Features:
Quantity:
  • T701
  • Right
  • Weighing
  • 1KN ~20kN
  • IP66
Product Description



Dimension


T701 installation dimensions






Parameters



Specifications



Technique


Capacity

5,10,20,30,50,100,200,500 kg

Accuracy

C3

Zero Balance

2.0 ± 0.05 mV / V

Non-linearity

± 2% F.S.

Hysteresis Error

0.017% F.S.

Repetition

0.018% F.S.

Creep (30 min)

0.0166% F.S.

Temp. Effect on sensitivity (TKc)

0.008% F.S. / 10 ℃

Temp. Effect on zero balance (TKo)

0.0125 % F.S. / 10 ℃

Input resistance

390 ± 5 Ω

Output resistance

350 ± 5 Ω

Insulating Resistance

≥5000 MΩ / 100VDC

Excitation Voltage

5 ~ 15 V

Max. Excitation Voltage

20 V

Compensation Range

-10 ~ 40 ℃

Service Temperature Range

-30 ~ 70 ℃

Limit load (E L)

150% F.S.

Breaking load (E d)

300% F.S.

Cable size

φ5.4 × 1500 mm

Weight (G), approx.

0.5 kg

Material (Measuring element)

Stainless Steel

IP Class

IP68






Features and Applications


Suitable for various environments, IP 68


T701 fully welded stainless steel sensor can be used in humid environment and in water flushing environment to maintain its characteristics.


The low-section all-weld seal and high-precision design make it suitable for platform scales, packaging scales, belt scales and other places that require sealed sensors.


For locations with explosion-proof requirements, EEx ia certification is provided as an option.


Two feedback lines can feedback the sensor voltage changes. It can rely on voltage feedback to fully compensate for changes in resistance caused by changes in temperature or changes in sensor lead length.





Load direction


t701-2





Wiring Code


Wiring regulations




Download    T701.pdf
