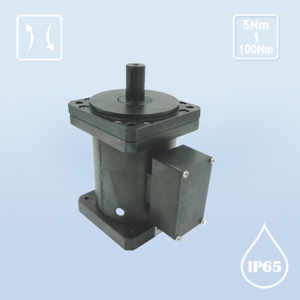

T903C Static Torque Force Transducer

Suitable for static and discontinuous rotation torque measurement;

Material:
Exterior:
Quantity:
  • T903C
  • Right
  • Torque
  • IP65
Product Description



● Features


Static torque sensor;

Compact structure, easy to install;

Protection grade IP65;

Used for torque measurement of static and discontinuous rotation;







● Installation size


T903C installation drawings




Range Cap (N.m) D1 D2 D3 C H H2 H3 H4 M

0.2,50,100

50 20H7 8H8 30 61 30.5 8 4 M 6 deep 8

200,300,50

73 30H7 10H8 45 82 41 8 4 M 10 deep 15

1,1.5,2

107 45H7 10H8 71 107 54 8 4 M 16 deep 22

4,5,6 kN.m

141 60H7 10H8 95 130 65 8 4 M 20 deep 25

10 kN.m

205 120H7 10H8 155 170 85 12 8 M 24 deep 35












● Parameter


Capacity

0.2,0.5,2,5,10,20,50,100,200 N.m

0.2,0.3,0.5,1,1.5,2,4,5,6,10 kN.m

Sensitivity

1.5 ± 10 % mV / V

Zero Balance

± 2% F.S.

Non-linearity

0.1% F.S.

Hysteresis Error

0.1% F.S.

Repetition

0.05% F.S.

Creep (30 min)

0.1% F.S.

Temp. Effect on sensitivity (TKc)

0.05% F.S./10℃

Temp. Effect on zero balance (TKo)

0.05% F.S./10℃

Input Resistance

410 ± 20 Ω

Output Resistance

350 ± 10 Ω

Insulation Resistance

≥5000 MΩ / 100VDC

Excitation Voltage

5 ~ 15 V

Max. Excitation Voltage

20 V

Compensation Range

-10 ~ 60 ℃

Service Temperature Range

-20 ~ 80 ℃

Limit load (E L)

120% F.S.

Breaking load (E d)

150% F.S.

Cable Size

φ3 × 4000 mm

IP Class

IP65







● Load direction        ● Wiring Code


Load_T903

Wiring-1





● Download

T903C.pdf
