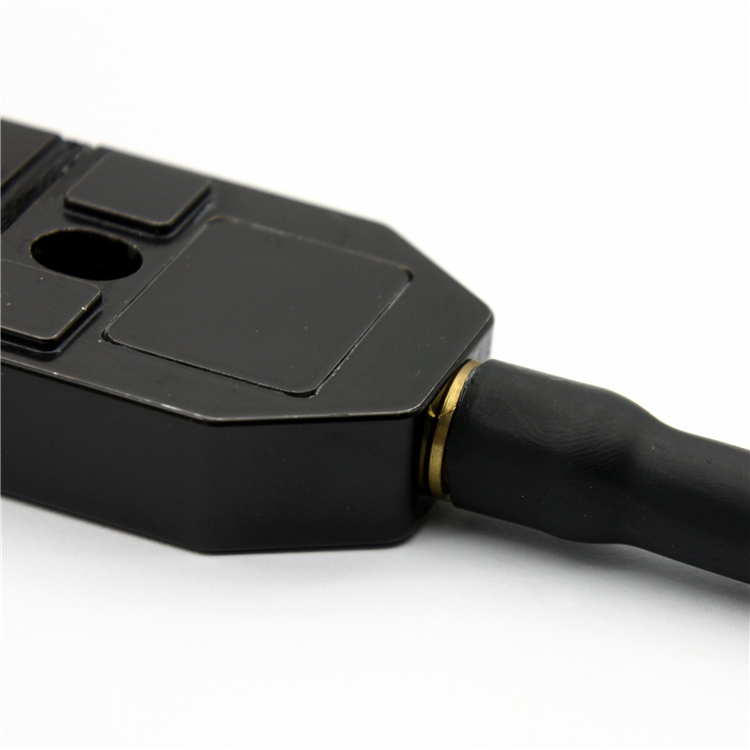

T910B Strain And Stress Sensor

Suitable for large equipment, bridges, railways, granaries, dams and other engineering fields;It is used to measure the strain and stress of the installation point. It is easy to install and only needs to be fastened with bolts.

Material:
definition:
Quantity:
  • T910B
  • Right
  • customization
  • IP66
Product Description



Dimension


T910B installation drawings





Parameter


Specification

Technique

Capacity

800 μ m / m

Sensitivity

1.5 ± 10% mV / V

Zero Balance

± 5% F.S.

Temp. Effect on sensitivity (TKc)

0.2 % F.S. / 10 ℃

Temp. Effect on zero balance (TKo)

0.5 % F.S. / 10 ℃

Input Resistance

1000 ± 20 Ω

Output Resistance

1000 ± 20 Ω

Insulating Resistance

≥5000MΩ / 100 VDC

Excitation Voltage

5 ~ 12 V

Max. Excitation Voltage

15 V

Compensation Range

-10 ~ 40 ℃

Service Temperature Range

-20 ~ 60 ℃

Limit load (E L)

150% F.S.

Breaking load (E d)

200% F.S.

Cable size

φ6 × 4000 mm

Weight (G), approx.

0.4 kg

Material (Measuring element)

Aluminum alloy

IP Class

IP66







Features and Applications


Easy to install, only need to be fastened with bolts

Reusable

Protection level: IP66

Adopt high elasticity material as strain material, choose high precision resistance strain gauge as sensitive component, high precision and good long-term stability

Large equipment, bridges, railways, granaries, dams and other engineering fields, used to measure the strain and stress of the installation point




Load Direction


t910b-2



Wiring Code


Wiring regulations




Download   T910B.pdf
