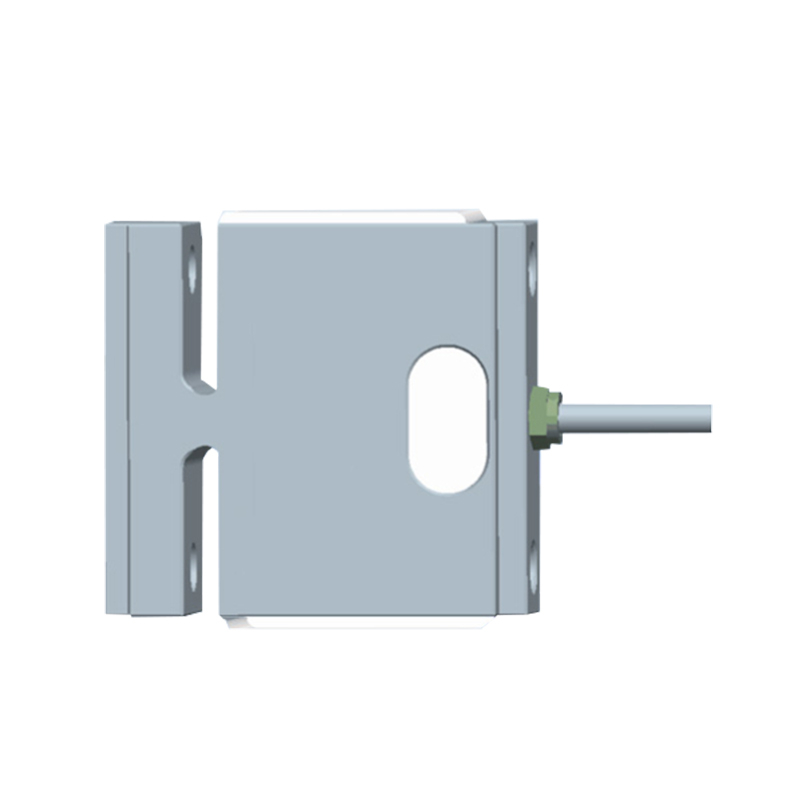

2-Axis Force Sensor T507

2-Axis Force Sensor boasts high precision and strong anti-partial-load capability. Easy mounting with customizable specifications available. Widely adopted for robotic arm precision force control, curved surface grinding and polishing, machining center precision engraving, and precision force measurement of medical equipment, offering reliable two-dimensional force monitoring for automated processing and precision testing scenarios.

Availability:

Quantity:



Inquire Add to Basket

Model:
T507
Brand:
Right
Load Direction:
Multi Axis
Capacity:
1N~100N, 100N~1000N
IP Class:
IP65

Product Description

Dimension

T507

Parameter

Specifications	Technique
Capacity	X: 20/50/100/150/200 Y: 20/50/100/150/200
Sensitivity	1.1 ± 0.1 mV / V (X direction) 2.2 ± 0.2 mV / V (Y direction)
Zero Balance	± 0.1 F.S.
Non-linearity	0.03% F.S.
Hysteresis Error	0.03% F.S.
Repetition	0.03% F.S.
Creep (30 min)	0.03% F.S.
Temp. Effect on sensitivity (TKc)	0.05% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.05% F.S. / 10 ℃
Input Resistance	300 ~ 500 Ω
Output Resistance	300 ~ 500 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 75 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	300% F.S.
Cable Size	8000 ± 100 mm
IP Class	IP65

Features and Applications

High precision and strong ability to resist partial load;

Easy to install;

Customizable specifications;

Robot arm precision control, curved surface grinding and polishing, machining center precision carving processing, medical equipment precision testing

Load Direction

T507 force mode
