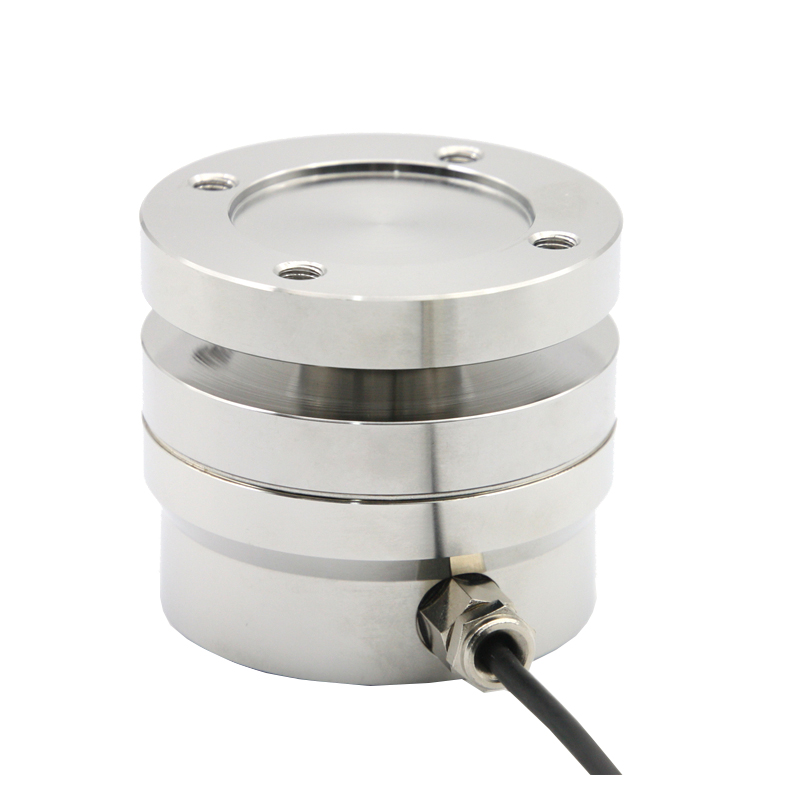

T311B
Right
Compression
1KN ~20kN, 20kN ~
IP67
Features & Applications
Low profile, small deflection and mini dimension
Made of stainless steel, High temperature could be customized
IP67 protection, customizable
Suitable for Automotive preset, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
Specifications | Technique |
Nomial load | 0.5,1,2,5,10,20,50kN |
Rated output | 1.0±20%om |
Zero balance | ±0.03mV/V |
Non-linearity | 0.2%F.S. |
Hysteresis | 0.2%F.S. |
Repeatability | 0.05%F.S. |
Creep(30min) | 0.1%F.S. |
Temp.effect on output | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 780±20Ω |
Output impedance | 700±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation | 10V |
Compensated temp range | -10-40℃ |
Operating temperature range | -20-60℃ |
Safe load limit | 120%F.S. |
Ultimate overload | 200%F.S. |
Protection class | IP67 |
Cable size | φ3-4m |
Material | Stainless Steel |

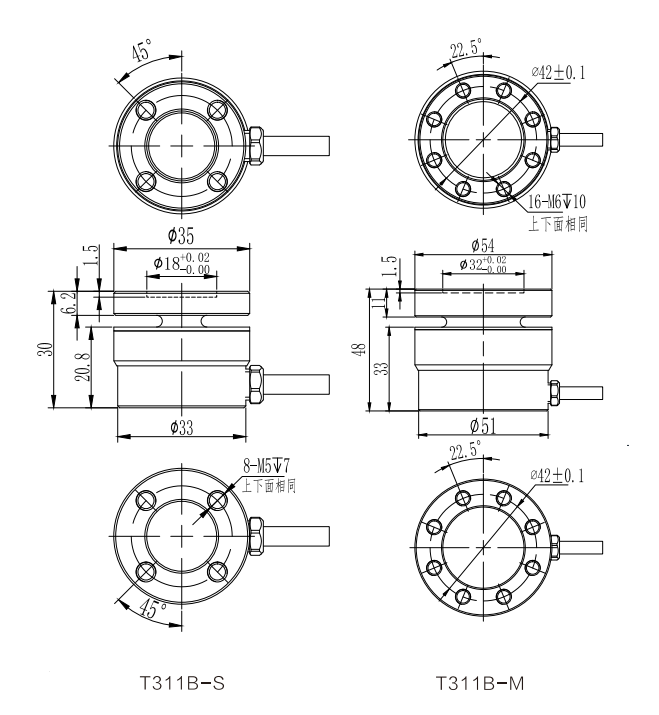

Mounting Dimension
Load Direction
Wiring Code
