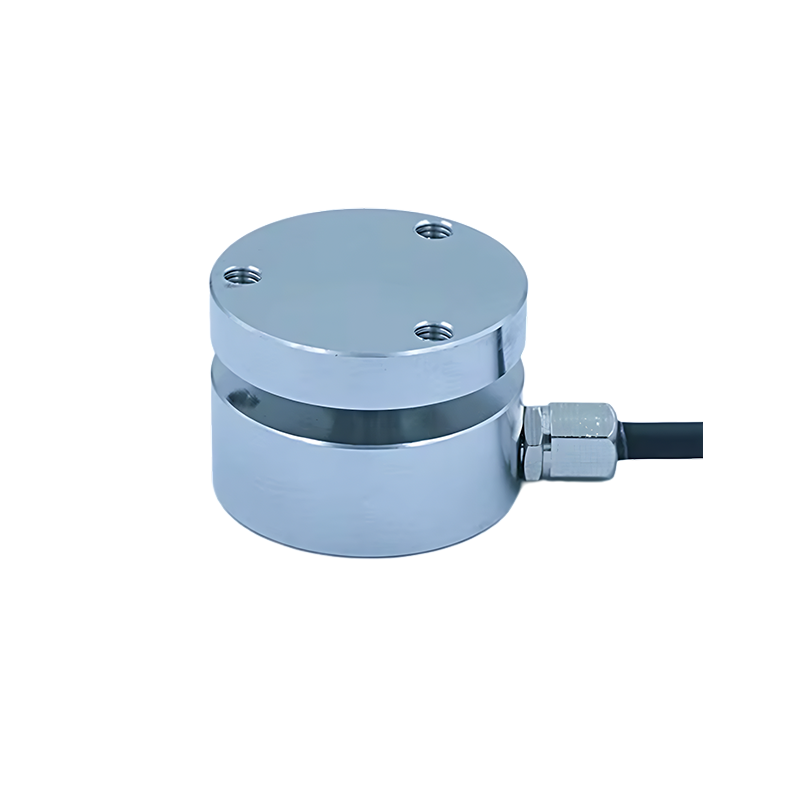

R403B
Right
Compression
100N~1000N, 1KN ~20kN
IP67
Features & Applications
Low profile, small deflection and mini dimension
High dynamic response frequency
Specifications
| Specifications | Technique |
| Nomial load | 1.5,2.5t(R403B-S)5,6,10t(R403B-M) |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±3%mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(30min) | 0.20%F.S |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-60℃ |
| Safe load limit | 150%F.S |
| Ultimate overload | 200%F.S. |
| lP class | IP67 |
| Cable size | φ5-4m |
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
