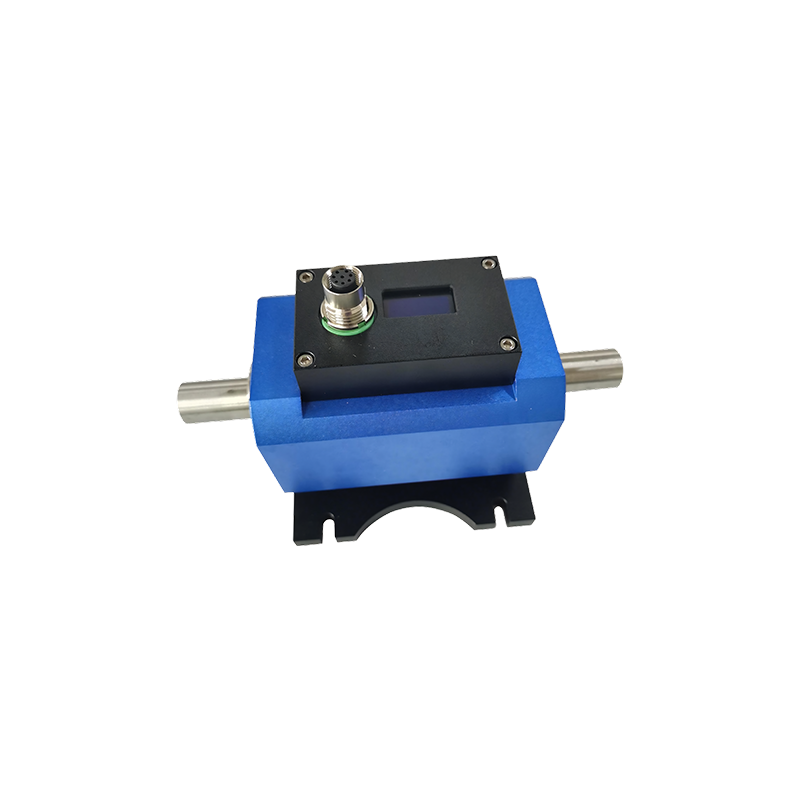

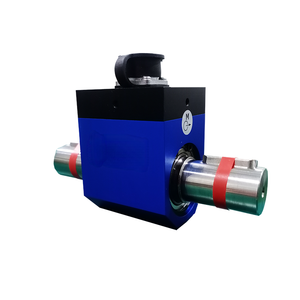

T908F
Right
Torque
5Nm~500Nm, 500Nm~
IP66
Features & Applications
This product is small in size, easy to use and install, and strong in signal anti-interference ability.
The product is non-contact, wear-free, and has a maximum speed of 8000RPM, which is suitable for long-term high-speed rotation conditions.
The product outputs 5 ～ 15kHz frequency signal or 4 ～ 20mA current signal, 0-10V and other voltage signals, suitable for long-distance transmission.

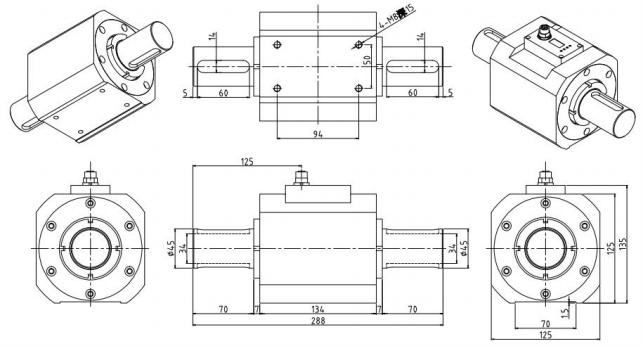

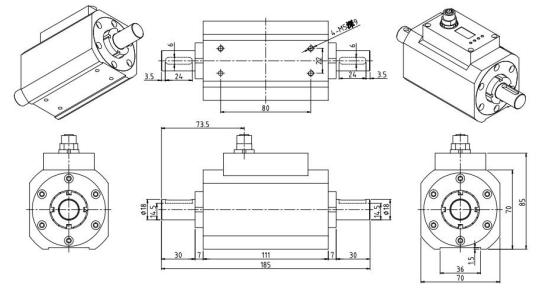

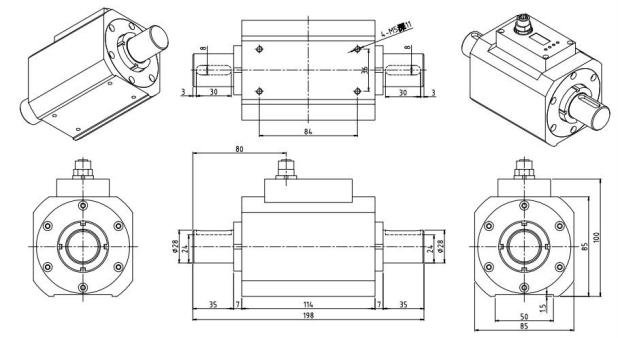

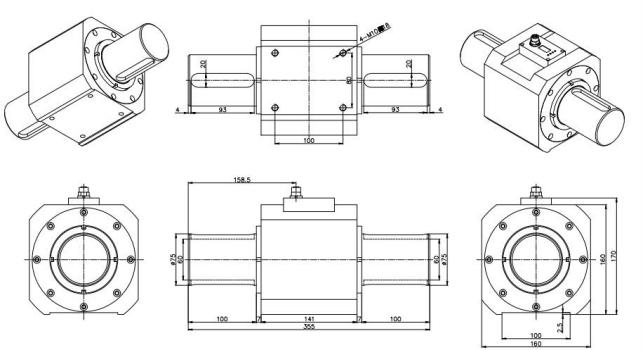

Size
5-100N.M
200-500N.M
1000-2000N.M
3000-5000N.M
Specifications
| Specifications | Technique |
| Capacity | 5~5000N.m Optional |
| Power supply | ±15V DC (applicable frequency signal output) 24V DC (applicable voltage or current signal output) |
| Torque signal | 5 ～ 15Khz (amplitude 12V, zero point 10kHz) 4 ～ 20mA, 1 ～ 5V, 0-10V (optional) |
| Speed range | 0 ～ 1000, 3000, 6000, 8000 rpm (8000 rpm needs to be replaced) 15000 rpm limit 5-100N.M |
| Rotation speed signal | The standard product does not measure the speed, the speed is fixed at 60 pulses/revolution signal. |
| Accuracy | ±0.2%、±0.5% |
| Annual stability | 0.25%/year |
| Insulation resistance | ≥2000MΩ(100VDC) |
| Environment temperature | -20 ～ 60℃ |
| Relative humidity | 0 ～ 90%RH |
| Overload capacity | 150% |
| Product packaging | 1 dynamic torque sensor (including key), 1 instruction manual, 1 certificate, 1 3m plug cable. |
