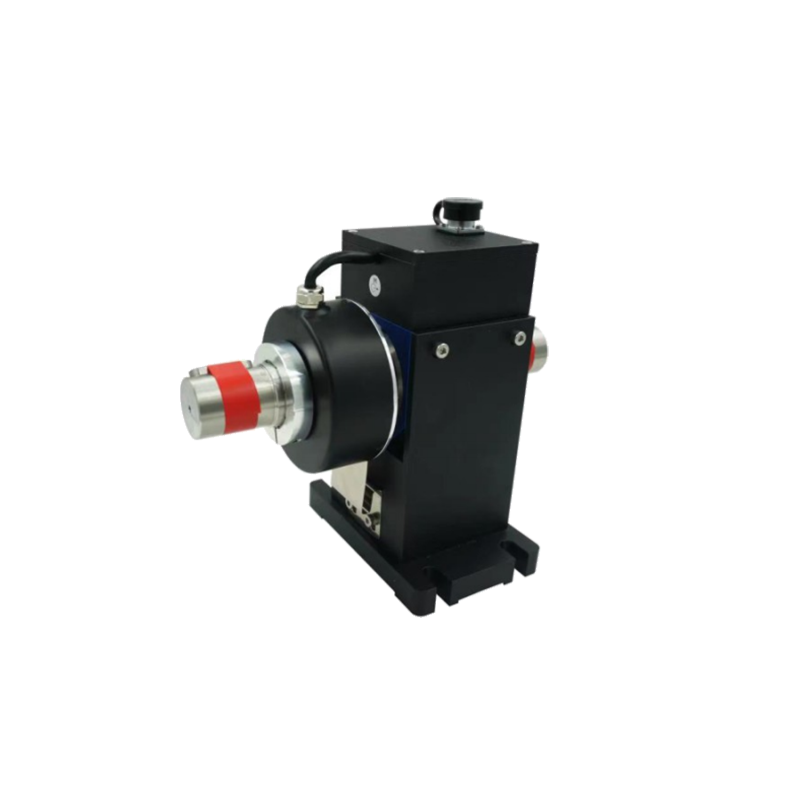

T908H
Right
Torque
5Nm~500Nm, 500Nm~
IP66
Features & Applications
Both ends are keyed.
Maximum speed of torque cannot over 15000r/min.
High precision with stable and reliable performance.
Constituted by Strain gauge sensitive components and integrated circuits.
This sensor is brush power supply, the output is OK for positive and negative torque signal.
Specifications
| Specifications | Technique |
| Capacity | -500~0~500Nm |
| Rated output | 1.0~15.mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(30min) | 0.5%F.S. |
| Temp.effect on sensitvty | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 350±10Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥2000MΩ/50vDC |
| Recommended excitation | 12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -30~60℃ |
| Safe load limit | 120%FS. |
| Breaking load | 150%FS. |
| Cable size | 3m |
| lP class | IP66 |
Wiring Code
