| Material: | |
|---|---|
| Exterior: | |
| Quantity: | |

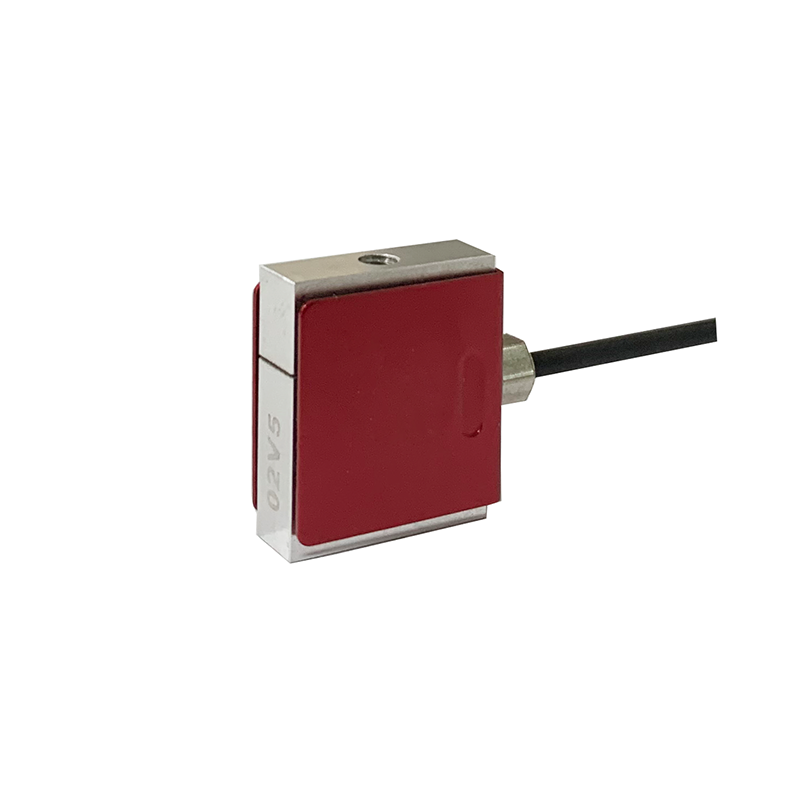

T313A3
Right
Tension & Compression
1N~100N, 100N~1000N
IP66
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 2.5,5,20,40,50,100,200,300,500N |
| Nominal(rated)sensitivity | 2.0±10%mV/V |
| Zero balance | ±3%mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10-40℃ |
| Operating temperature range | -20-60℃ |
| Safe load limit | 150%F.S. |
| Ultimate overload | 200%F.S. |
| lP class | IP66 |
| Material | Stainless Steel |
| Cable size | φ2-4000mm(black cable) |
| Range | M | d |
| 2.5-30 | M3 | 6.6 |
| 50-500 | M4 | 7.6 |
