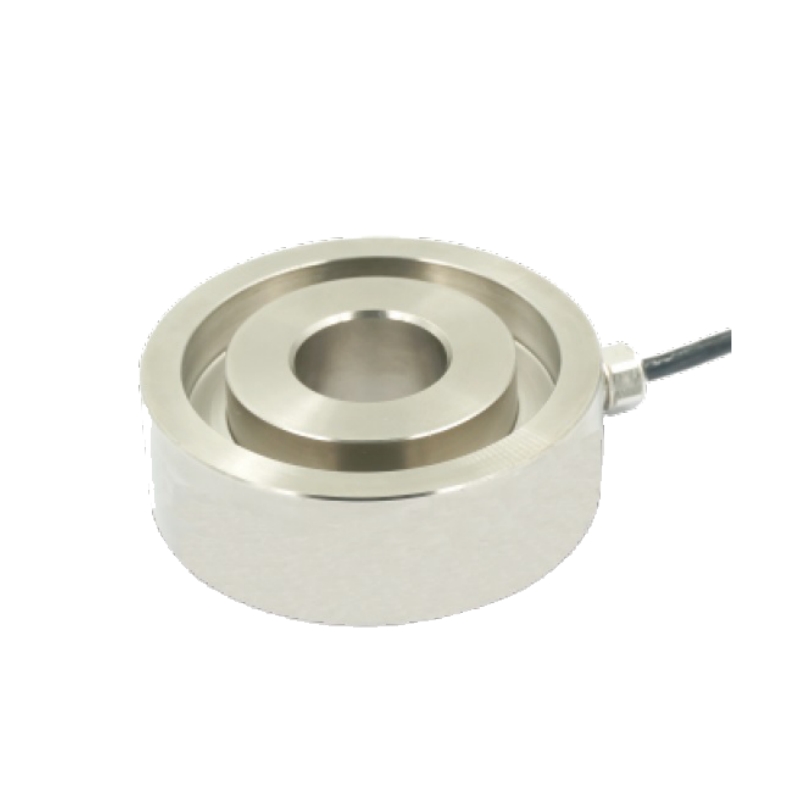

T119B
Right
Tension & Compression
1KN ~20kN
IP67
Features & Applications
Low profile, small deflection
Made of stainless steel or Alloy steel
Mainly used for monitoring of thread force
Suitable for Automotive preset, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
Specifications
Specifications | Technique |
Capacity | 5,10,20,30,50kN |
Rated output | 1.5±20%mV/V |
Zero balance | ±2%F.S |
Non-linearity | 0.2%F.S. |
Hysteresis | 0.2%F.S. |
Repeatability | 0.1%F.S. |
Creep(30min) | 0.2%F.S. |
Temp.effect on output | 0.1%F.S/10℃ |
Temp.effect on zero | 0.1%F.S/10℃ |
Input impedance | 780±20Ω |
Output impedance | 700±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation Voltage | 15V |
Compensated temp range | -10~60℃ |
Operating temperature range | -20-80℃ |
Safe load limit | 150%F.S. |
Breaking load | 300%F.S. |
Cable size | Φ4x4000mm |
lP class | IP67 |

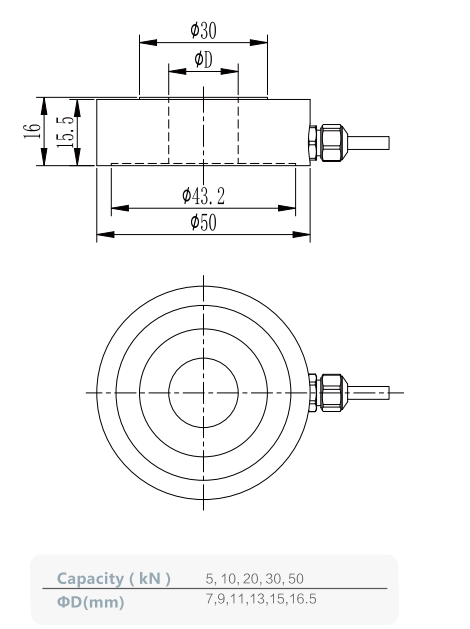

Mounting Dimension
Load Direction

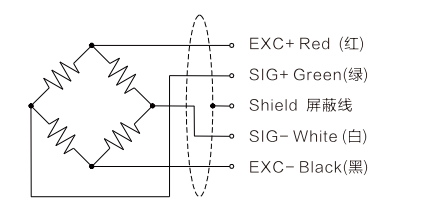

Wiring Code
