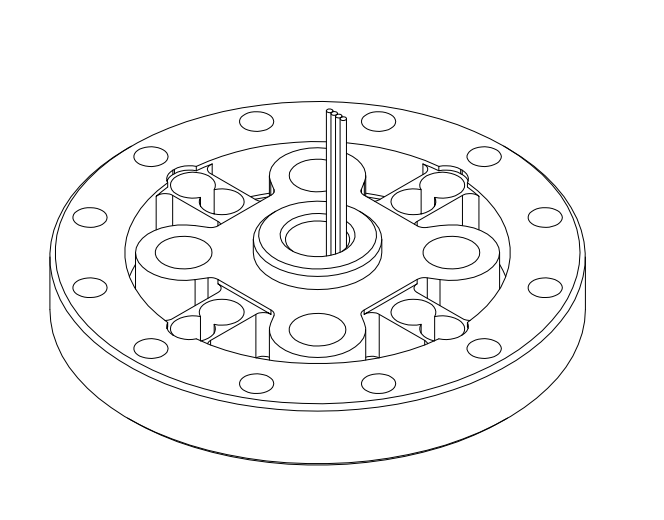

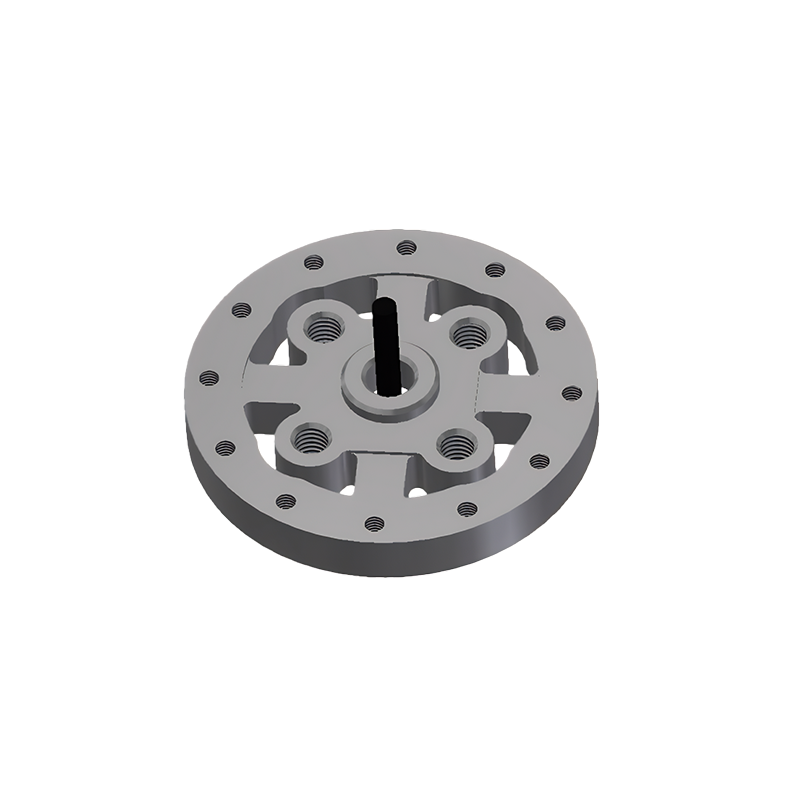

F209C-50
Right
Torque
IP66
Features & Applications
High accuracy with strong ability of anti-side force.
Easy to install, IP66 protection.
Dimension is customizable.
Precision control of mechanical arm, grinding and polishing for Spherical, carved processing of machining center, precision testing of medical equipment.
Specifications
Specifications | Technique |
Nominal(rated)torque Mnom | 10、30、50、80、100N.m |
Nominal(rated)sensitivity | 1.5±20%mV/V |
Zero balance | ±0.05mV/V |
Non-linearity | 0.2%F.S. |
Hysteresis | 0.5%F.S. |
Repeatability | 0.1%F.S. |
Creep(30min) | 0.1%F.S. |
Temp.effect on sensitvty | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 700±70Ω |
Output impedance | 700±50Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5-12V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operating temperature range | -20-80℃ |
Safe load limit | 150%FS. |
Breaking load | 200%FS. |
Cable size | φ2×200mm |
Protection class | IP66 |

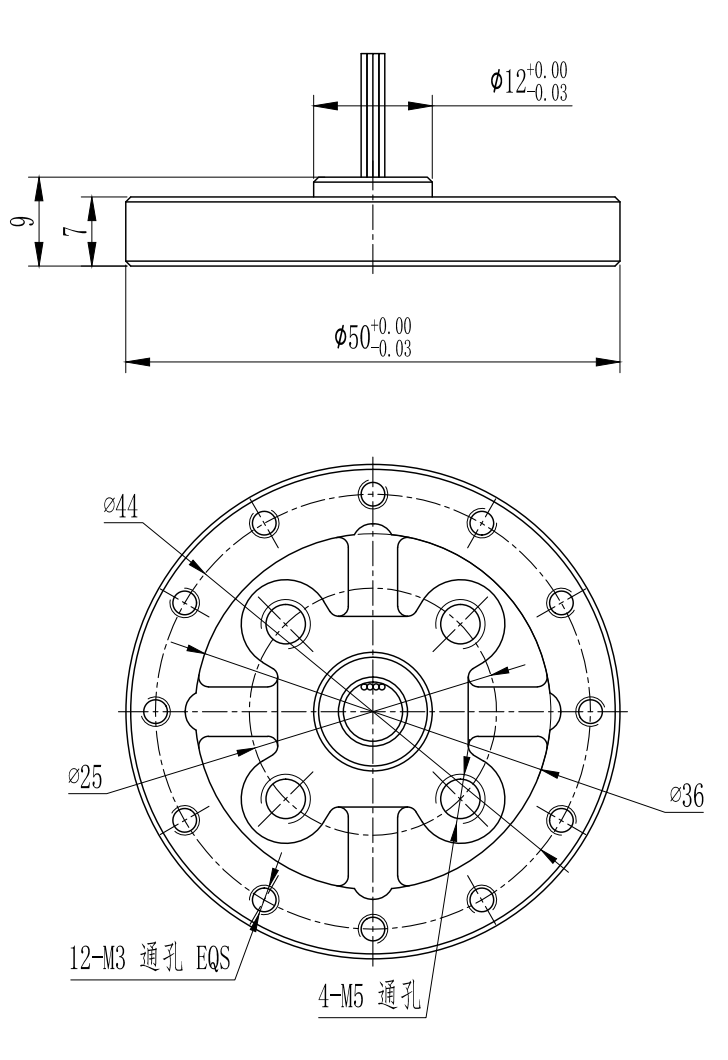

Mounting Dimension
Wiring Code
