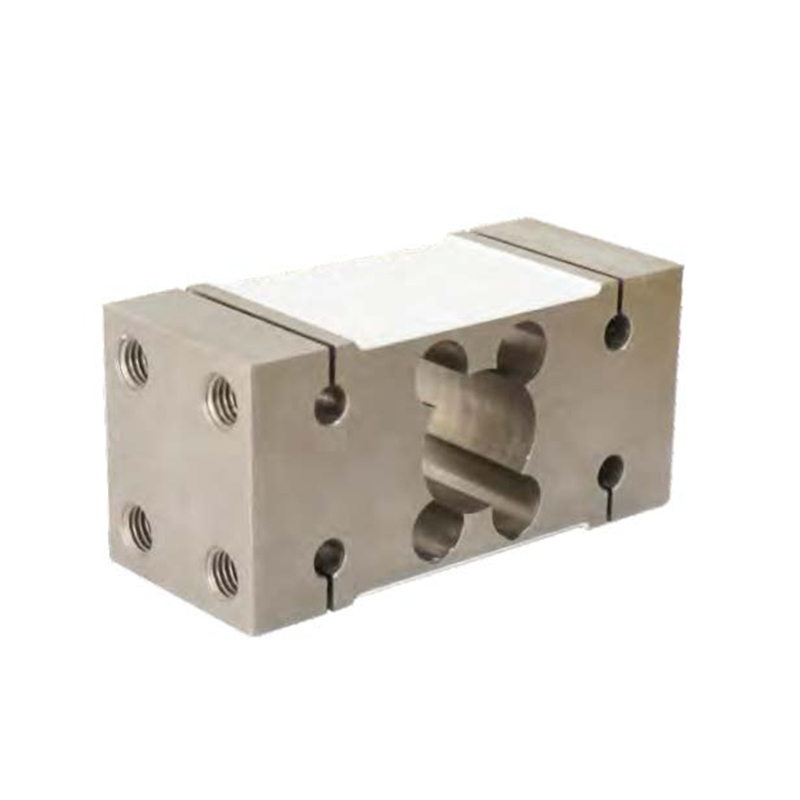

T717B
Right
Weighing
100N~1000N, 1KN ~20kN
IP67
Features & Applications
Made of Stainless Steel, Strong stability
Quadrilateral deviation compensated
Good long-term stability
It is mainly used in the process weighing system of stainless steel waterproof scales, chemical waterproof pharmaceutical industry, etc.
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,300,500,1000kg |
| Rated output | ≤1%F.S. |
| Zero balance | ±2%F.S. |
| Non-linearity | ≤0.017%F.S. |
| Hysteresis | ≤0.017%F.S. |
| Repeatability | ≤0.01%F.S. |
| Creep(30min) | ≤0.017%F.S. |
| Temp.effect on output | 0.002%F.S./10℃ |
| Temp.effect on zero | 0.002%F.S./10℃ |
| Input impedance | 380±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -45-65℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 300%F.S. |
| Cable size | Φ6.3×2500mm |
| Material | Stainless steel |
| lP class | IP67 |
| Maximum mesa size | 500×500mm,600×800mm 800×1000mm |
| Tightening torque | 30N.m 160N.m |
Mounting Dimension
Load Direction
Wiring Code
