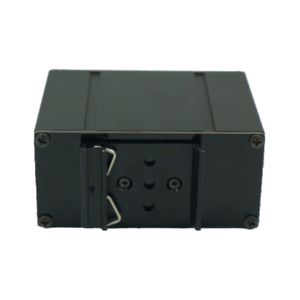

T095B-PN
Right
AD Transmitter
IP64
Features & Applications
Full isolation design, power supply, sensor, serial port and option board are isolated from each other
Weight free calibration, suitable for complex weighing conditions
TEDS interface, matched with tesd sensor to realize calibration free
Built in multiple applications, upper and lower limits, weight check, preset points, peak capture comparison
Measurement, analysis and control functions can be added according to customer requirements
Industrial communication interfaces such as±10V/4~20mA, Ethernet, PROFIBUS-DP, PROFINET IRT and Ethernet/IP can be selected.
Performance index
| Comprehensive accuracy | % | 0.01 |
| Verification division number | e | 10000 |
| Measurement sensitivity | μV/e | ≥0.5 |
| Minimum sensitivity | μV/e | 0.02 |
| Measurement signal range | mV/V | ±2.0 |
| Maximum signal input range | mV/V | ±5.0 |
| Power supply | VDC | 5±1% |
| Measurement resolution of rated input signal | 1000000 | |
| Range | Segment | 2 |
| Linear calibration | Segment | 5 |
| Measurement rate | times/second | 200;100;50;25;10 |
| Digital filter cutoff frequency | Hz | 10;...0.3 |
| Communication interface | RS232 or RS485 | |
| Working power supply voltage | VDC | 18~32 |
| Working temperature range | ℃ | -30..+65 |
Mounting Dimension
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
