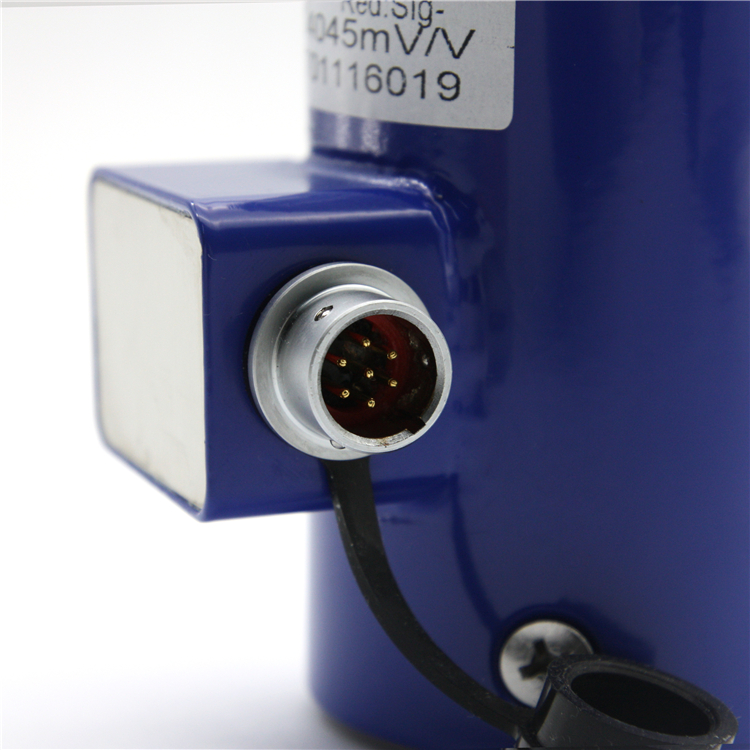

T197 Force Measuring Device Compression Load Cell

It is mainly used in force measuring equipment and can be used as a standard source for measurement;
Strong stability, maximum capacity up to 5000T, suitable for various environments.
Material:
Size:
Availability:
Quantity:
  • T197

  • Right

  • Compression

  • 20kN ~

  • IP67

Product Description



● Features and Applications


Strong stability;

Suitable for various environments and protection grade IP67;

The maximum capacity is up to 5000T;

Mainly used in force measuring equipment;

Can be used as a standard source for measurement;

High precision, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;






● Dimension


T197 installation drawings








● Parameter


Capacity

50,100,200,500,1000,2000,3000,

5000,10000,20000,50000 kN

Sensitivity

-2.0 mV / V

Zero Balance

±1% F.S.

Non-linearity

0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.

Hysteresis Error

0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.

Repetition

0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.

Creep (30 min)

0.02% F.S, 0.05% F.S. 0.1% F.S., 0.3% F.S.

Temp. Effect on sensitivity (TKc)

0.05% F.S./10℃

Temp. Effect on zero balance (TKo)

0.05% F.S./10℃

Input Resistance

760 ± 20 Ω

Output Resistance

700 ± 10 Ω

Insulating Resistance

≥5000MΩ / 100VDC

Excitation Voltage

5 V

Max. Excitation Voltage

15 V

Compensation Range

-10 ~ 60 ℃

Service Temperature Range

-30 ~ 70 ℃

Limit load (EL)

150% F.S.

Breaking load (Ed)

300% F.S.

Cable Size

φ5.4 × 6000 mm

Material (Measuring element)

Stainless steel / alloy steel

IP Class

IP67








● Load Direction      ● Wiring Code

r178c2-3

Wiring 1













● Download   T197.pdf
