| Material: | |
|---|---|
| definition: | |
| Quantity: | |

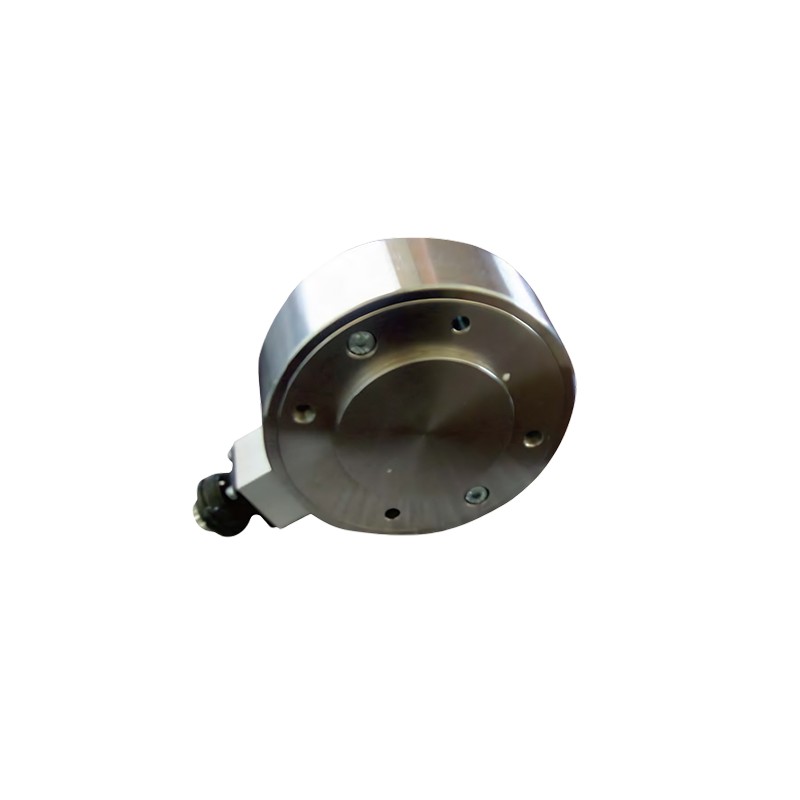

T911
Right
Tension
1N~100N, 100N~1000N, 1KN ~20kN, 20kN ~
IP65
Specifications
| Specifications | Technique |
| Nominal(rated)torque Mnom | 20N~25kN |
| Nominal(rated)sensitivity | 2.0±0.2%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.25%F.S. |
| Hysteresis | 0.25%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 410±10Ω |
| Output impedance | 350±5Ω |
| Operating temperature range | -20-80℃ |
| Safe load limit | 120%F.S |
| lP class | IP65 |
| Cable size | Φ5×3000mm |
FAQ
Will you will attend the fair to show your products?
Yes, we participate in several exhibitions at home and abroad every year
Can you send your sensor to my warehouse in guangzhou?
of course，We have good transportation here
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We are fully customized of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer.
