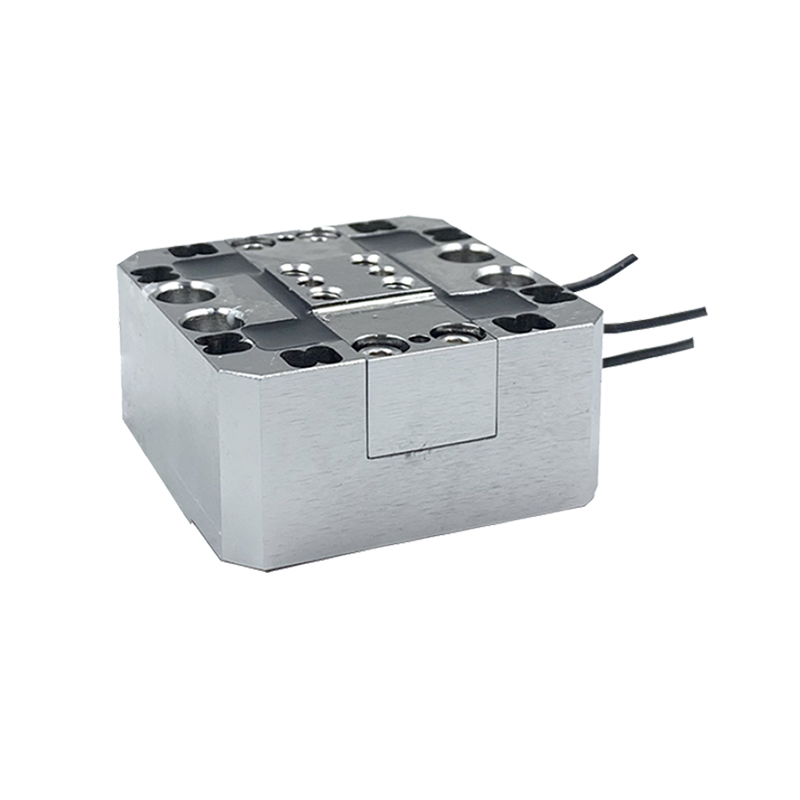

T504E
Right
Multi Axis
IP66
Features & Applications
High accuracy with strong ability of anti-side force
Easy to install, IP66 protection
Dimension is customizable
Precision control of mechanical arm, grinding and polishing for Spherical, carved processing of machining center, precision testing of medical equipment
Specifications
| Specifications | Technique |
| Nomial load | Fx=fy=5,10,20,30,50kg Fz=10,20,50,75,100kg |
| Rated output | 1±20mVV |
| Zero balance | ±0.05mVN |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Creep(30min) | 0.3%F.S. |
| Temp.effect on output | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥2000MΩ/20VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10-60℃ |
| Operating temperature range | -20-80℃ |
| Safe overload | 150%F.S. |
| Utimate overload | 200%F.S. |
| Cable size | 3-Φ2×2m |
| lP class | IP66 |
Mounting Dimension
Load Direction
Wiring Code
