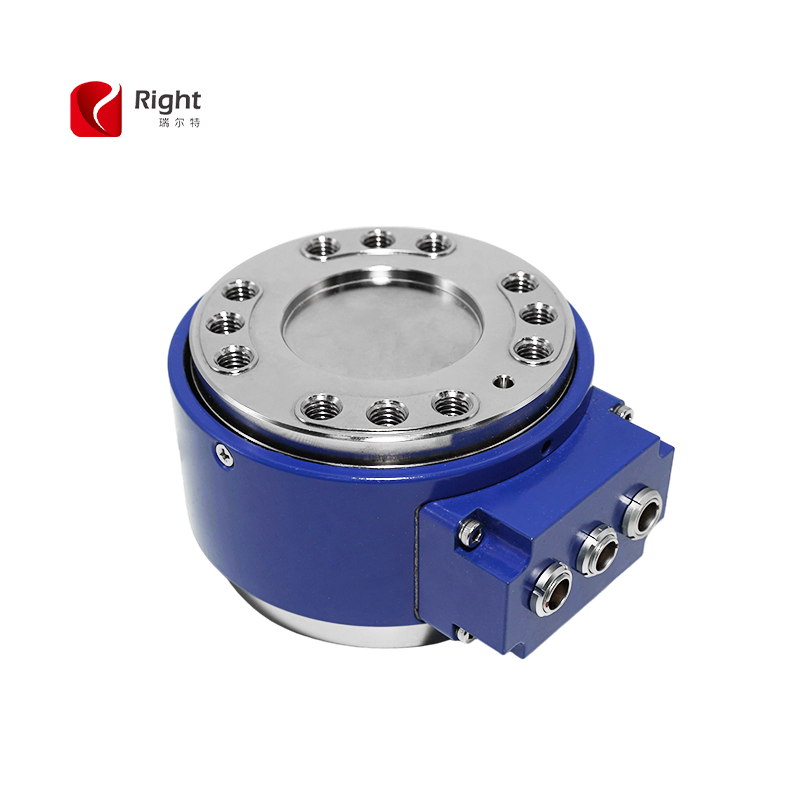

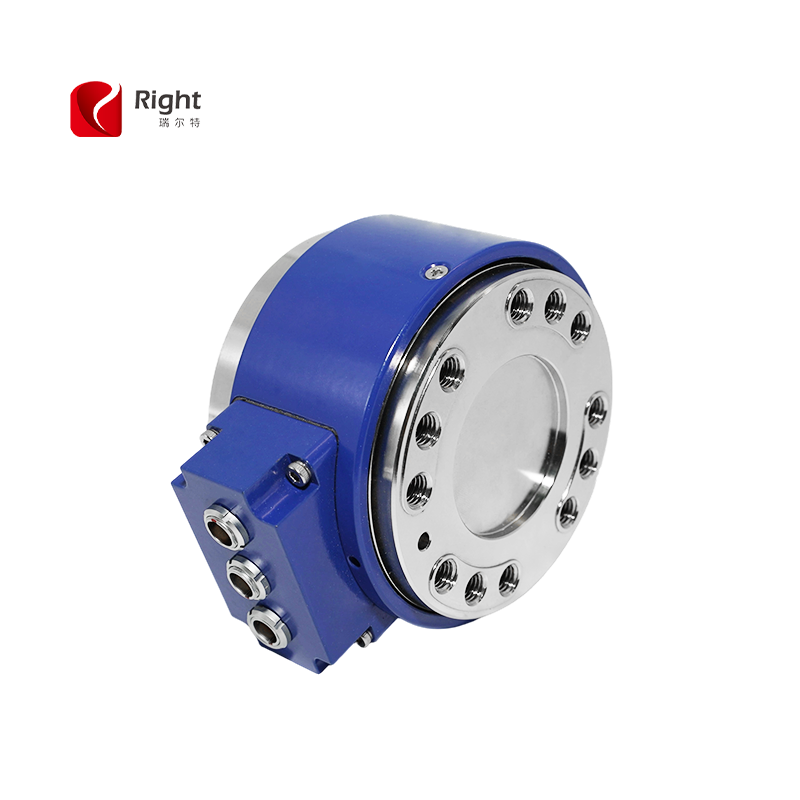

3 Axis Force Sensor T521G

3 Axis Force Sensor T521G
Material:
17-4PH Stainless Steel
Aluminum Alloy
Customized specifications
Features:
Internal digital decoupling
Anti-interference ability
Communication :
EtherCAT
Ethernet
Availability:
Quantity:
Inquire Add to Basket

  • T521G

  • Right

  • Multi Axis

  • 1N~100N, 100N~1000N, 1KN ~20kN, 0.1Nm~5Nm, 5Nm~500Nm, 500Nm~

  • IP68

Product Description



Specifications

Specifications Technique
Rated output ≈1.0mV/V
Zero balance +2%F.S.
Non-linearity 0.03%F.S.
Hysteresis 0.03%F.S.
Repeatability 0.03%F.S.
Interference error 1%F.S.
Creep(30min) 0.05%F.S.
Temp.effect on output 0.05%F.S./10°C
Temp.effect on zero 0.05%F.S./10°C
Insulation ≥5000MΩ/100VDC
Recommended excitation 5~12V
Maximum excitation 15V
Compensated temp range -10~40°C
Operation temp range -20~75°C
Safe overload 150%F.S.
Ultimate overload 300%F.S.
Cable size Φ4x4000mm
IP Class IP66

Mounting Dimension

Wiring Code
