| Material: | |
|---|---|
| Features: | |
| Communication : | |
| Quantity: | |

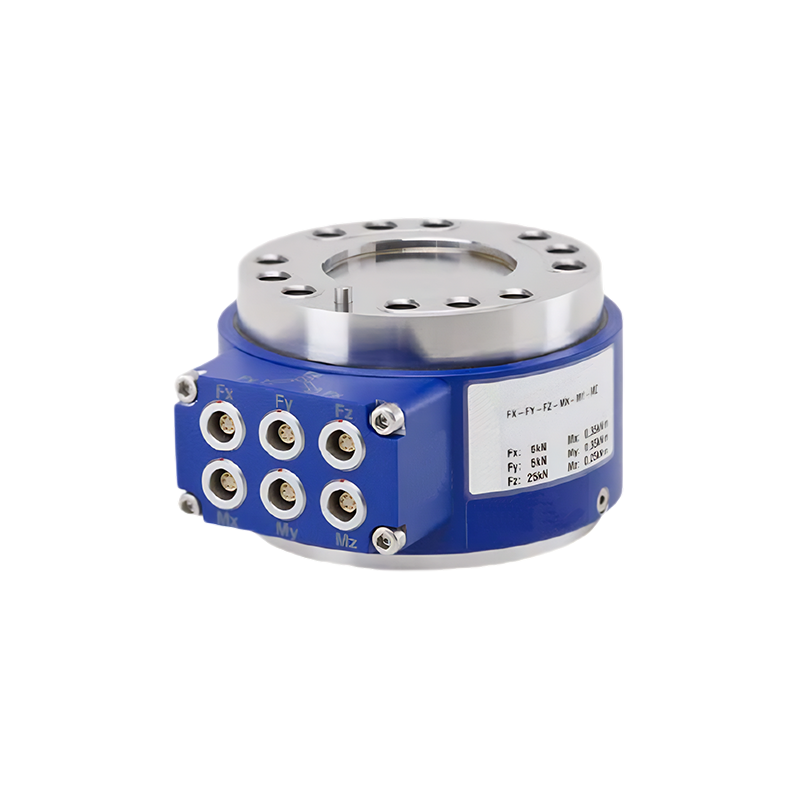

T521G2
Right
Multi Axis
1N~100N, 100N~1000N, 1KN ~20kN, 0.1Nm~5Nm, 5Nm~500Nm, 500Nm~
IP68
Specifications
| Specifications | Technique |
| Rated output | ≈1.0mV/N |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Interference error | 1%F.S. |
| Creep(30min) | 0.05%F.S |
| Temp.effect on output | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5-12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20~75℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ4×4000mm |
| lP class | IP66 |
Dimensions
Load Direction
Wiring Code
FAQ
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
Can you can design the sensor according to our size?
We offer fully - customized services of designing sensors meticulously tailored to our customers' specific requirements.
How many years have your company made this kind of sensor?
It's been around for 12 years
Where is your factory located?
In Changzhou, Jiangsu Province, China,Close to Shanghai, convenient transportation
If OEM is acceptable?
Certainly! OEM is one of our core business areas. We have a professional team and advanced production lines to ensure high - quality OEM services.
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
