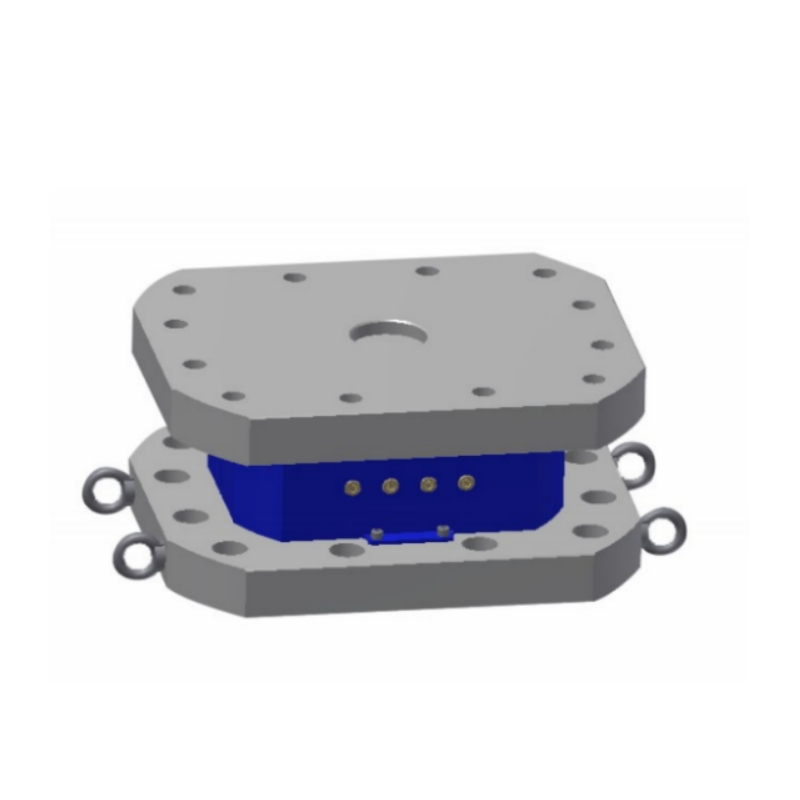

T510H
Right
Multi Axis
IP65
Features & Applications
4 components:Fx,Fy,Fz,Mz
For static and dynamic loads
Maximum precision and versatility
Integrated mechanical decoupling
Custom engineered measuring platform
Specifications
Specifications | Technique |
Nomial load | Fx=Fy=600kNFz=1000kN Mz=100kN.m |
Rated output | Fx=Fy=2.0mVV Fz=0.5mVV,Mz=1.0mVV |
Entangled error | 5%F.S. |
Non-linearity | 0.5%F.S |
Hysteresis | 0.5%F.S |
Repeatability | 0.5%F.S |
Creep(30min) | 0.5%F.S |
Temp.effect on output | 0.1%F.S./10℃ |
Temp.effect on zero | 0.1%F.S./10℃ |
Insulation | ≥2000MΩ/50VDC |
Recommended excitation | 5V |
Maxmum excitation | 15V |
Compensated temp range | -10-60℃ |
Operation temp range | -35-80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%FS |
IP Class | IP65 |
Cable | 4×Φ6-4m |

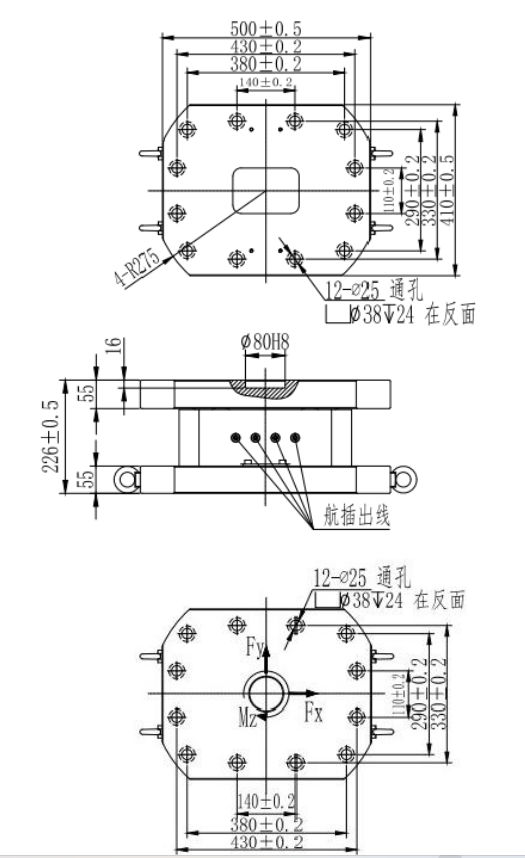

Mounting Dimension

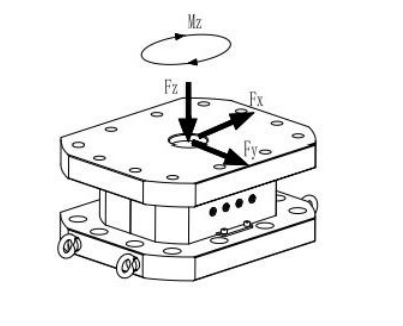

Load Direction

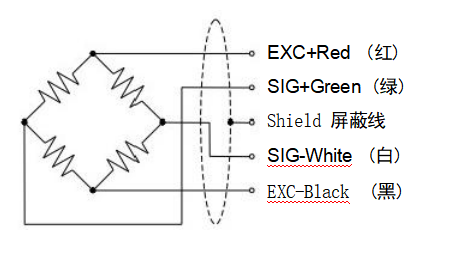

Wiring Code
