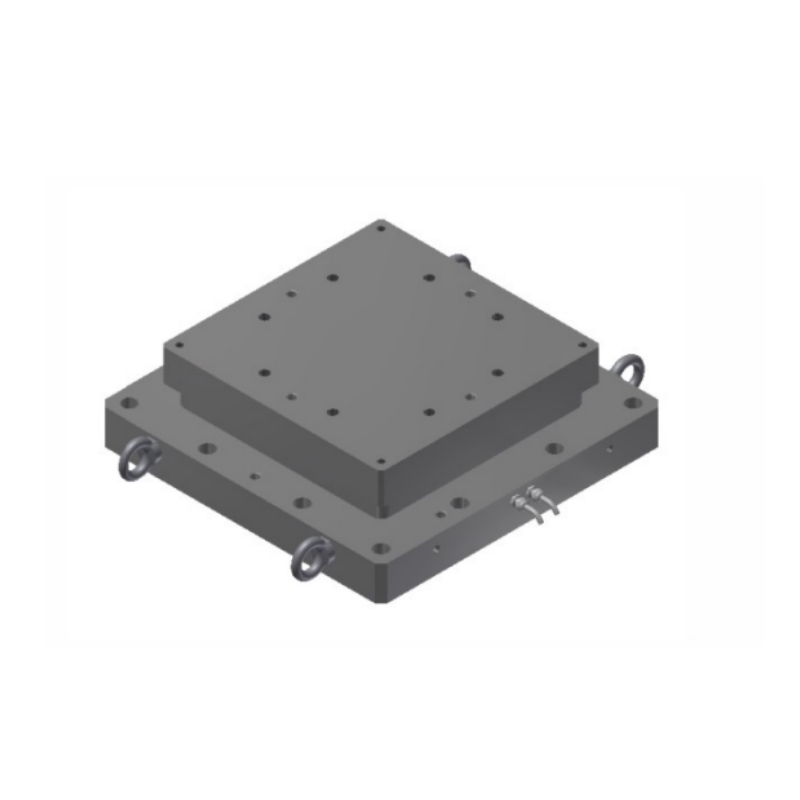

T508
Right
Multi Axis
IP65
Features & Applications
6 components:Fx,Fy,Fz,Mx,My,Mz
For static and dynamic loads
Maximum precision and versatility
Integrated mechanical decoupling
Custom engineered measuring platform
Specifications
Specifications | Technique |
Nomial load | Fx=10kg Mx=2.5kN.m Fy=5kN My=5kN.m Fz=23kN Mz=23kN.m |
Rated output | ≈1.0mV/V |
Zero balance | ±5%mV/V |
Non-linearity | 1%F.S. |
Hysteresis | 1%F.S. |
Repeatability | 0.5%F.S. |
Creep(30min) | 0.3%FS. |
Temp.effect on output | 0.1%F.S./10℃ |
Temp.effect on zero | 0.1%F.S./10℃ |
Input impedance | 380/780±20Ω |
Output impedance | 350/700±10Ω |
Insulation | ≥2000MΩ/50VDC |
Recommended excitation | 5~12V |
Maxmum excitation | 15V |
Compensated temp range | -10~40℃ |
Operation temp range | -20-60℃ |
Safe overload | 120%F.S. |
Ultimate overload | 50%F.S. |
IP Class | IP65 |
Cable | 2-φ6X4m |

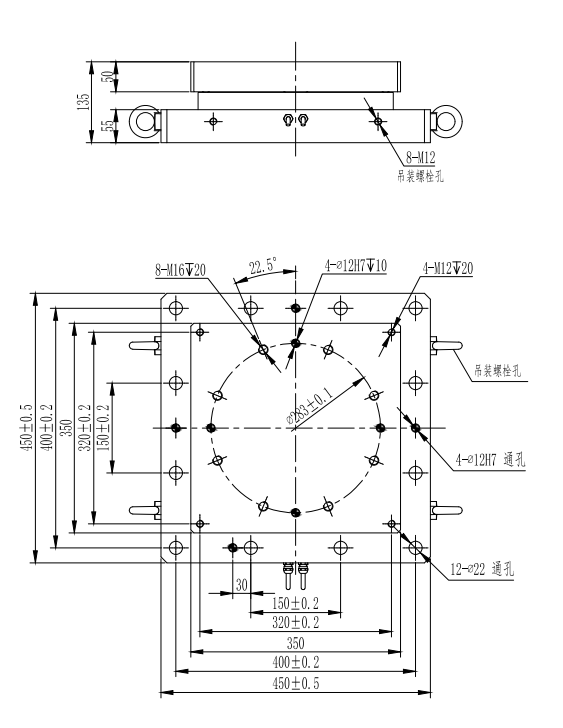

Mounting Dimension

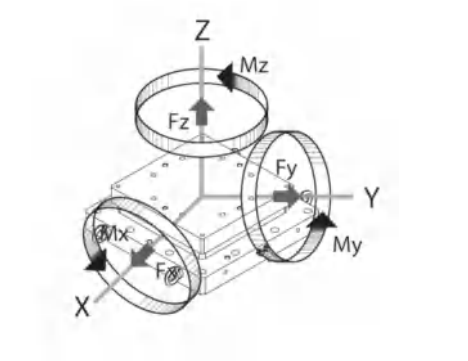

Load Direction
Wiring Code
