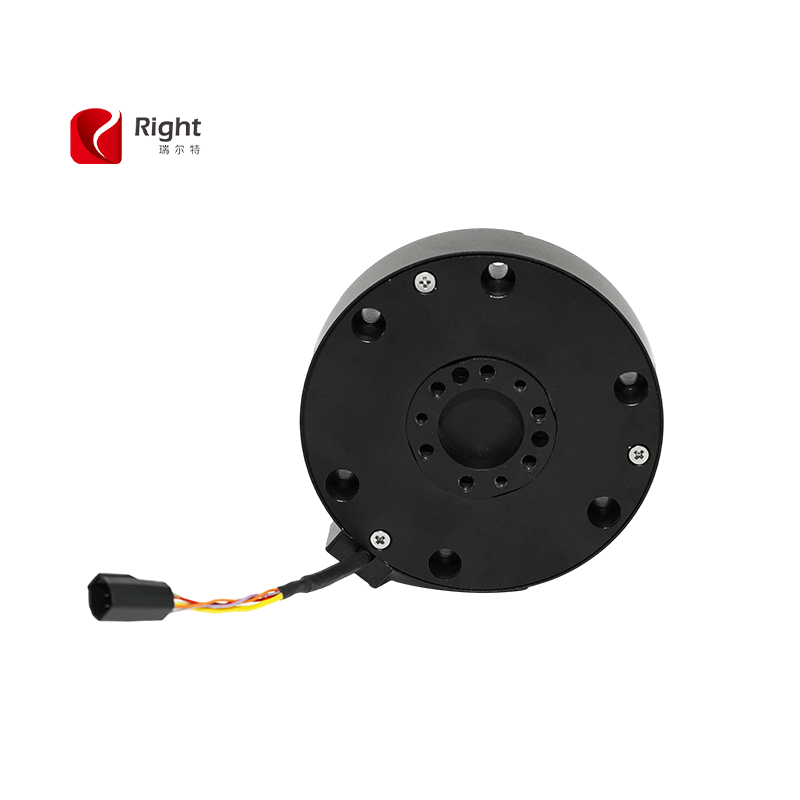

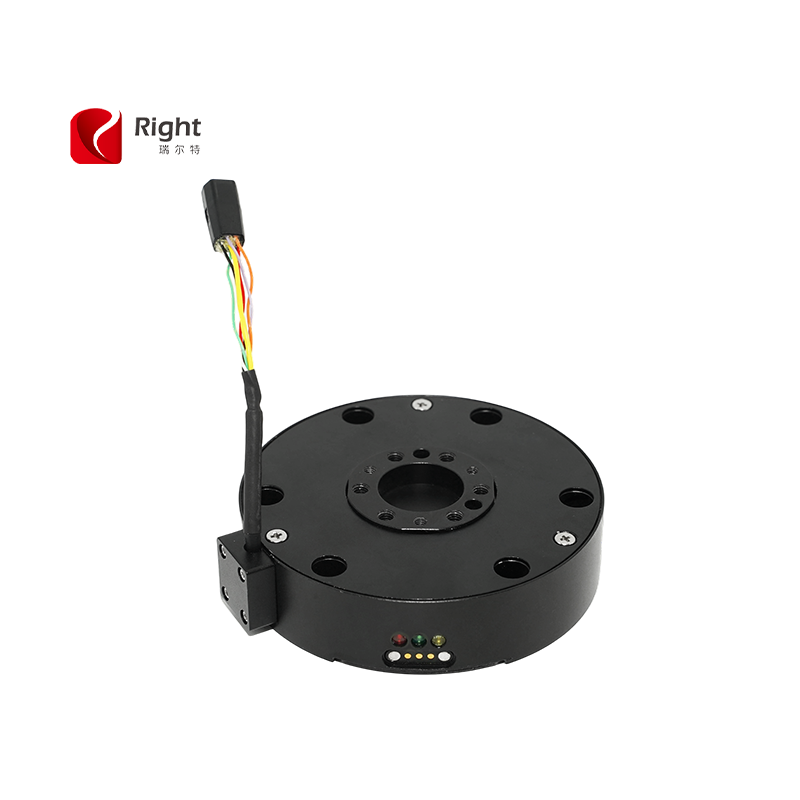

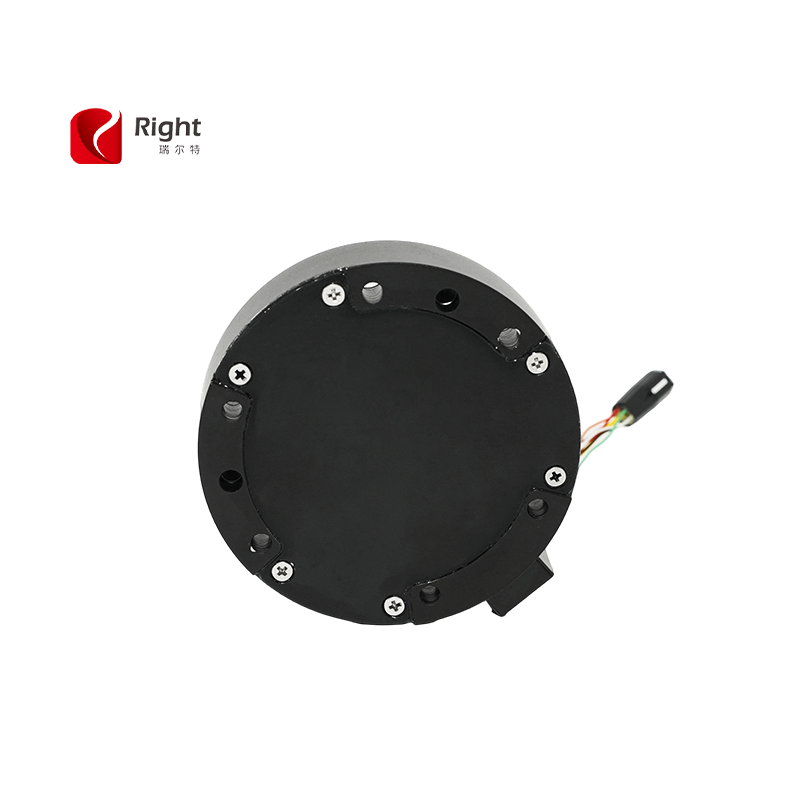

6 Axis Force Sensor T521T85

6 Axis Force Sensor T521T85 is constructed from high-strength aluminum alloy material, achieving lightweight design while maintaining reliable structural stiffness. It adopts two-way thread installation structure, which supports flexible mounting from two directions to adapt to various mechanical layout schemes.
The sensor is engineered with 5 times overload capacity and excellent anti-overload performance to provide sufficient safety buffer against unexpected impact and transient peak loads. It is equipped with working status indicator light and reserved magnetic upgrade interface for convenient firmware iteration and function expansion.
Multiple built-in signal outputs are optional, including RS485, EtherCAT and EtherCAN. Utilizing internal digital decoupling technology, it effectively suppresses axis crosstalk and features powerful anti-interference capability, guaranteeing stable and accurate measurement results under complex industrial electromagnetic environments.

Material:	aluminum alloy
communication method:	Ethercat RS485 EtherCAN
Availability:

Quantity:



Inquire Add to Basket

Model:
T521T85
Brand:
Right

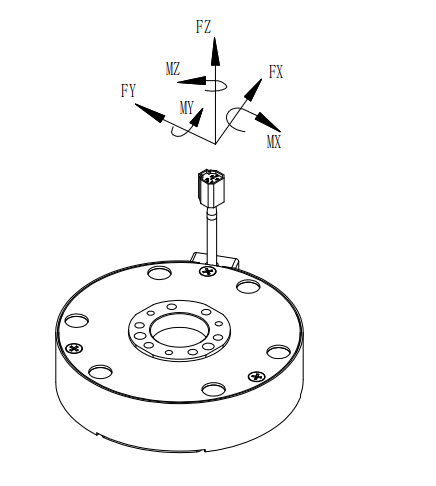

Load Direction:
Multi Axis
Capacity:
1N~100N, 100N~1000N, 1KN ~20kN, 20kN ~, 0.1Nm~5Nm, 5Nm~500Nm, 500Nm~
IP Class:
IP65

Product Description

Features & Applications

High-strength aluminum alloy material

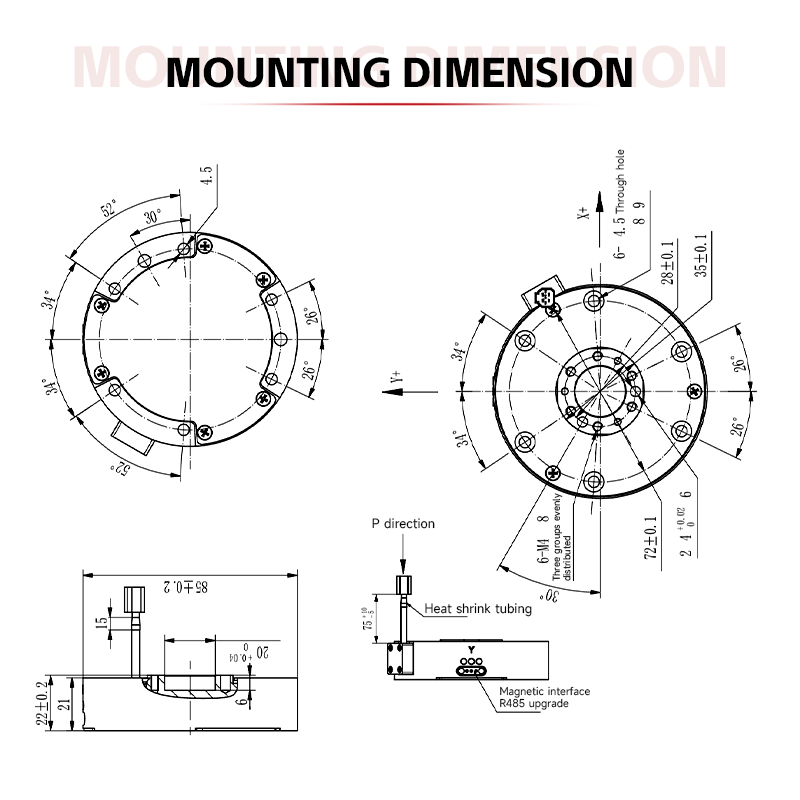

Two-way thread installation

5 times overload, strong anti-overload ability

With indicator light, with magnetic upgrade interface

Built-in 485, Ethercat, EtherCAN output optional, internal digital decoupling, strong anti-interference ability

Specifications

Specifications	Technique
Rated Capacity	Fx=Fy=200N Fz=400N Mx=My=Mz=12N.m
Output mode	Ethercat
Distingui shability	Fx=Fy=0.1N,Fz=0.2NMx=My=Mz=0.005N.m
Interaction error	1%FS
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep(30min)	0.1%F.S.
Temp. effect on output	0.1%F.S./10℃
Temp. effect on zero	0.1%F.S./10℃
Insulation	≥2000MΩ/50VDC
Supply Voltage	12~54VDC
Picking rate	1kHz
Compensated temp range	-10~40℃
Operation temp range	-20~60℃
Safe overload	150%F.S.
Ultimate overload	400%F.S.
IP class	IP65
Cable length	φ3.2-75mm
