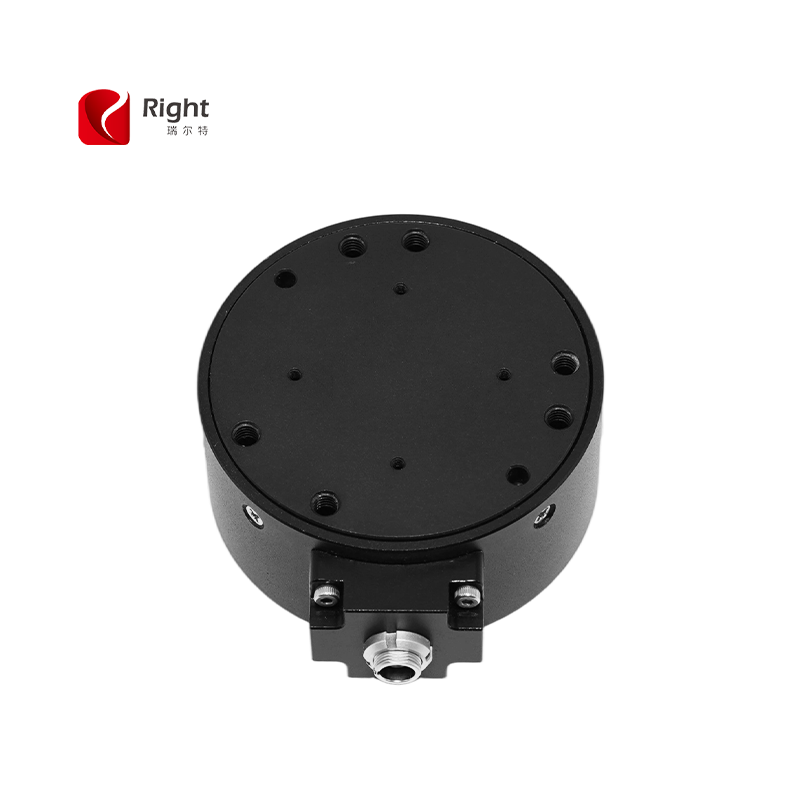

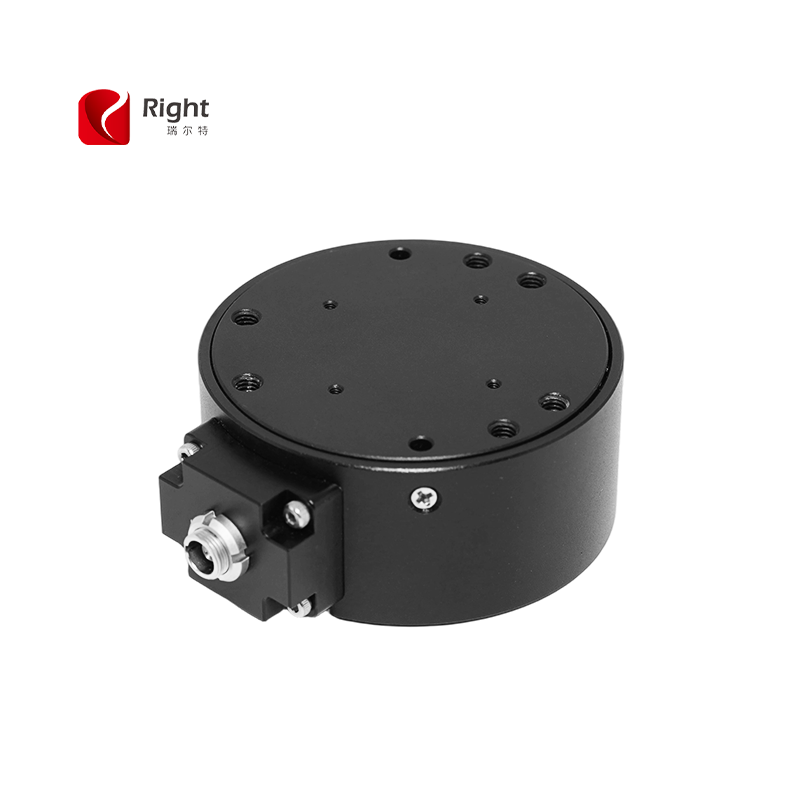

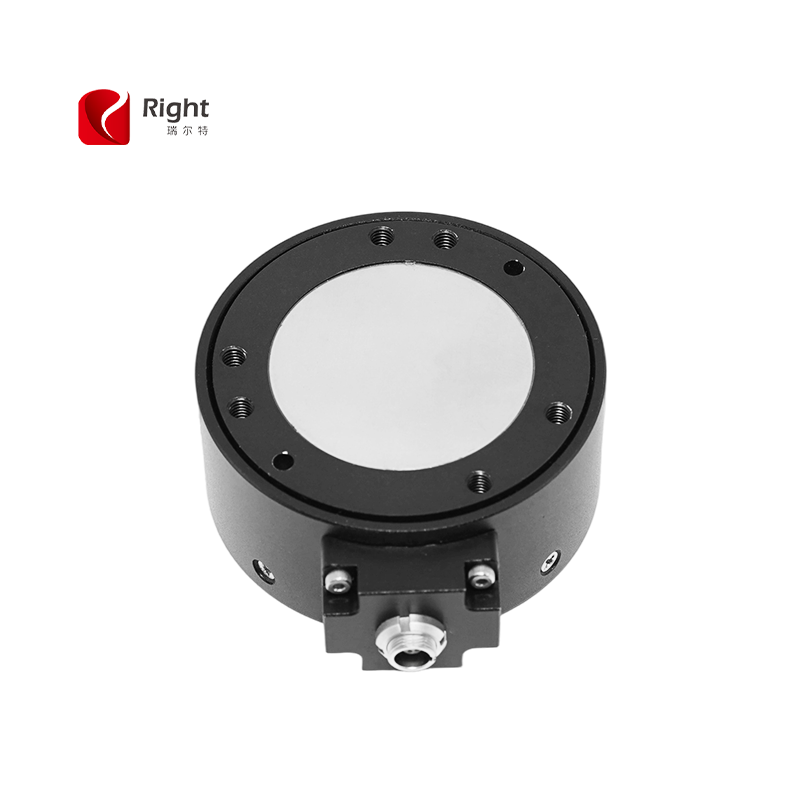

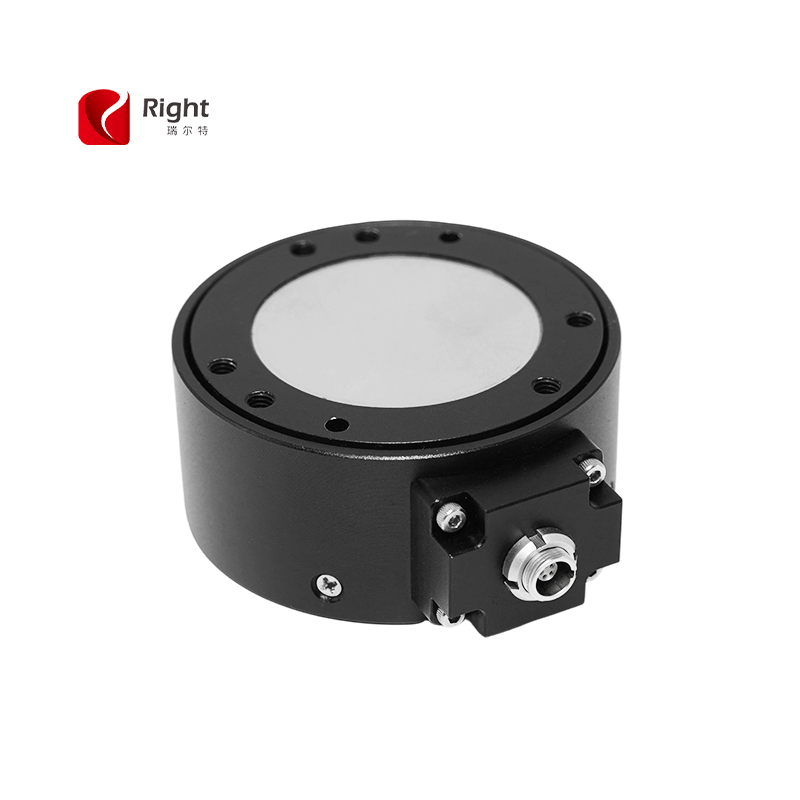

T521G18D2
Right
Multi Axis
IP65
Features & Applications
Stainless steel material, double-sided thread installation
Built-in digital signal output optional
5 times overload
Specifications
Specifications | Technique |
Rated Capacity | Fx=Fy=200N,Fz=400NMx=My=Mz=10N.m |
Output mode | Ethercat |
Distinguishability | Fx=Fy=0.1N,Fz=0.2NMx=My=Mz=0.005N.m |
Non-linearity | 0.2%F.S. |
Hysteresis | 0.2%F.S. |
Repeatability | 0.1%F.S. |
Creep (30min) | 0.1%F.S. |
Temp. effect on output | 0.1%F.S./10°C |
Temp. effect on zero | 0.1%F.S./10°C |
Insulation | ≥2000MΩ/50VDC |
Supply voltage | 10~95VDC |
Picking rate | 1kHz |
Power | ~3W |
Compensated temp range | -10~40°C |
Operation temp range | -20~60°C |
Safe overload | 200%F.S. |
Ultimate overload | 500%F.S. |
IP class | IP65 |
Cable | To Be Determined |

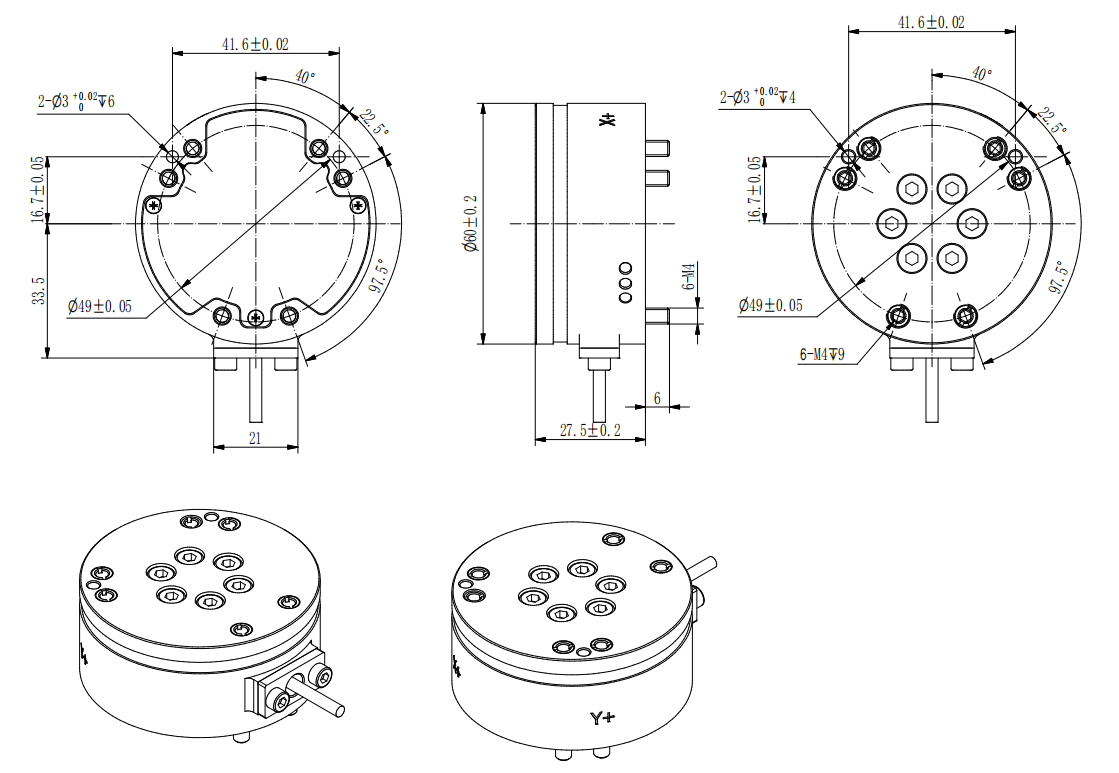

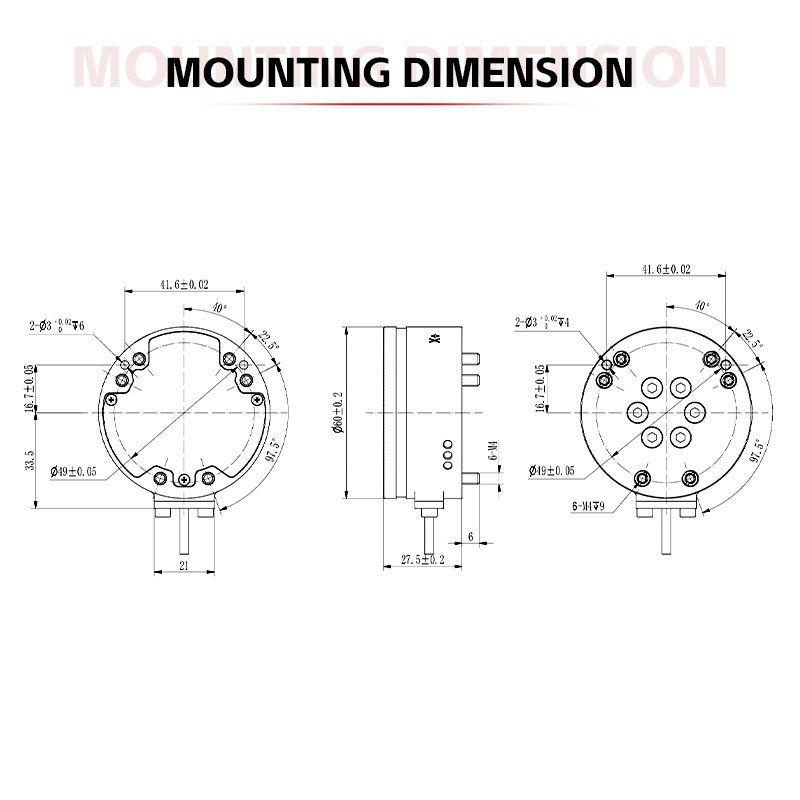

Mounting Dimension
Limit Deviations for Untoleranced Dimensions | ||||
Size Range | f (Fine) | m (Medium) | c (Coarse) | v (Very Coarse) |
0~6 | ±0.05 | ±0.1 | ±0.2 | ±0.5 |
>6~30 | ±0.1 | ±0.2 | ±0.5 | ±1.0 |
>30~120 | ±0.15 | ±0.3 | ±0.8 | ±1.5 |
>120~400 | ±0.2 | ±0.5 | ±1.2 | ±2.5 |
>400~1000 | ±0.3 | ±0.8 | ±2 | ±4 |
>1000~2000 | ±0.5 | ±1.2 | ±3 | ±6 |
>2000~6000 | ±1 | ±2 | ±4 | ±8 |
