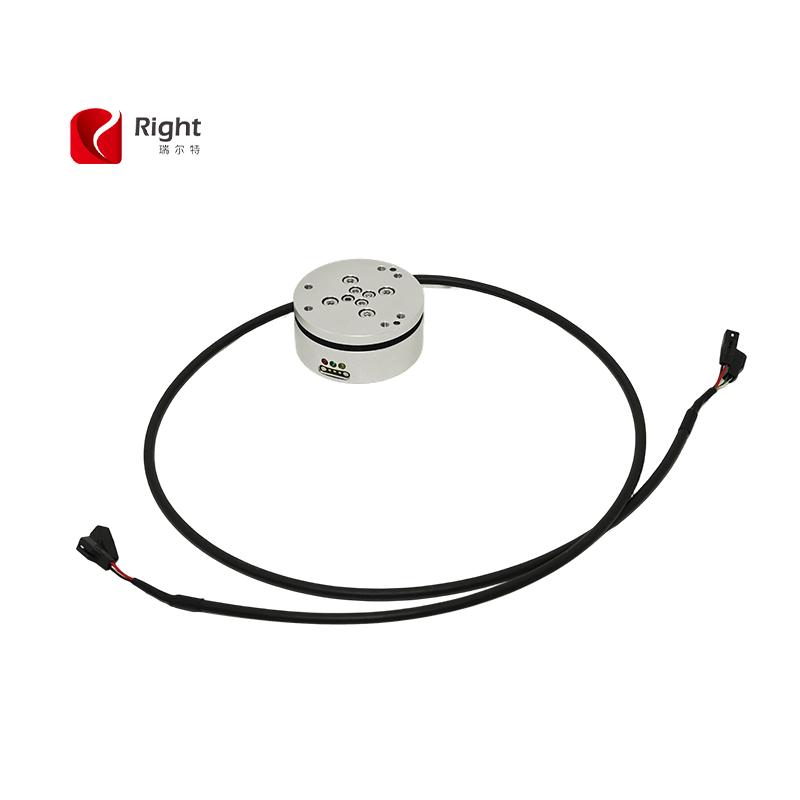

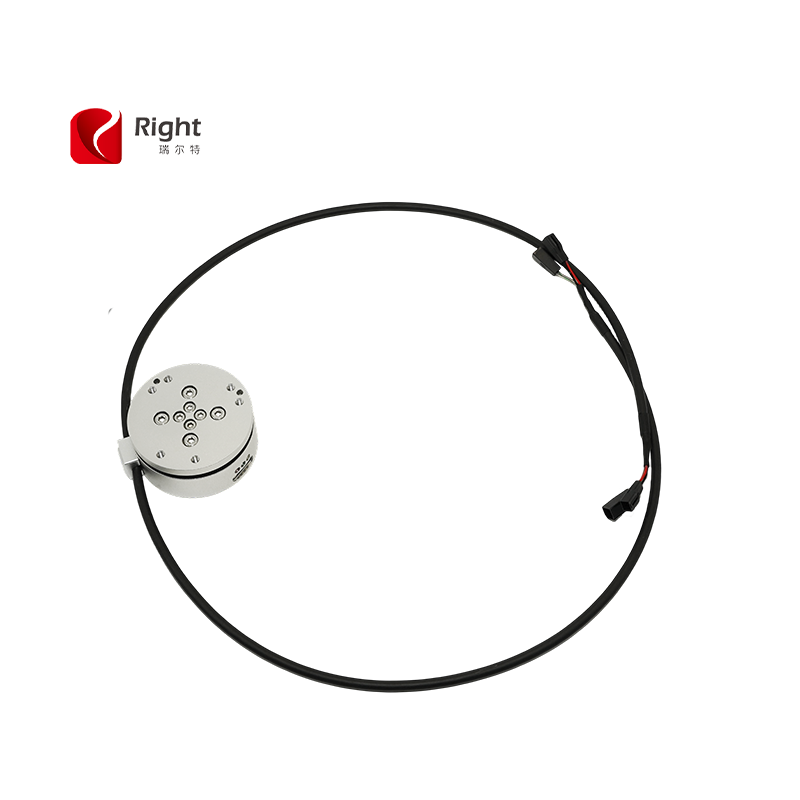

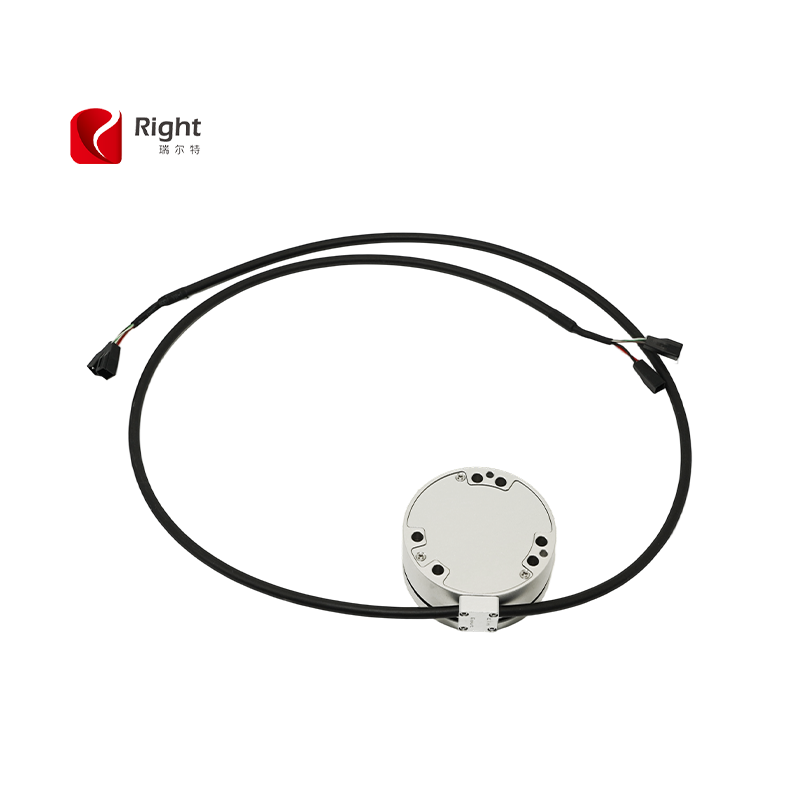

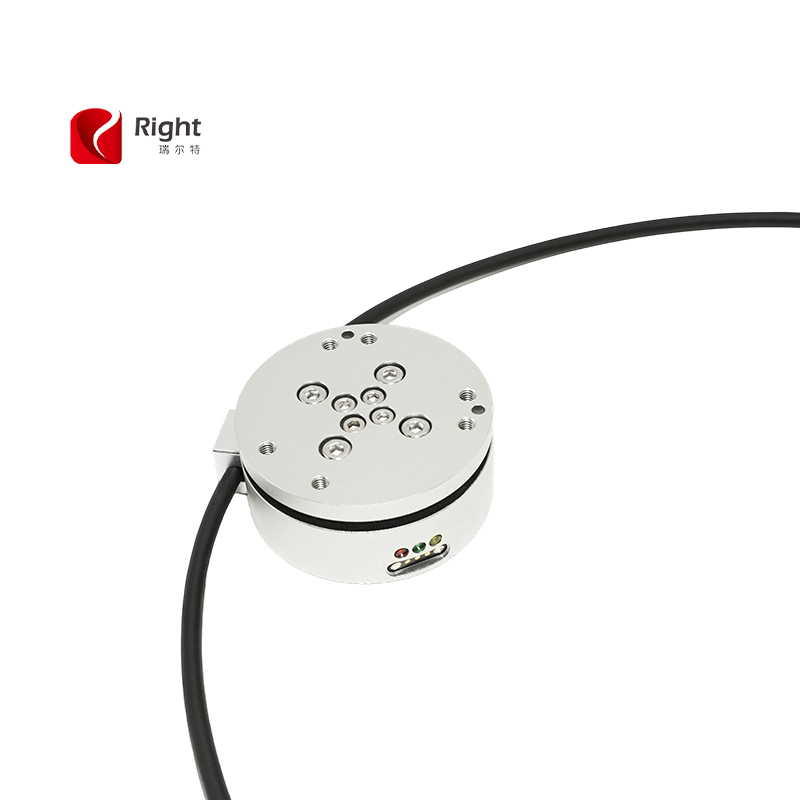

T521J11C-D
Right
Multi Axis
IP65
Features & Applications
High-strength aluminum alloy material
Side outlet
One in and one out, can pass 3A high current
CAT cascade
Specifications
Specifications | Technique |
Rated Capacity | Fx=Fy=200N Fz=400N Mx=My=Mz=10N.m |
Output mode | Ethercat |
Distinguishability | Fx=Fy=0.1N,Fz=0.2N Mx=My=Mz=0.005N.m |
Interaction error | 1%F.S. |
Non-linearity | 0.1%F.S. |
Hysteresis | 0.1%F.S. |
Repeatability | 0.1%F.S. |
Creep(30min) | 0.1%F.S. |
Temp. effect on output | 0.1%F.S./10°C |
Temp. effect on zero | 0.1%F.S./10°C |
Insulation | ≥2000M0/50VDC |
Supply voltage | 10~95VDC |
Picking rate | 1kHz |
Compensated temp range | -10~40°C |
Operation temp range | -20~60°C |
Safe overload | 200%F.S. |
Ultimate overload | 500%F.S. |
IP class | IP65 |
Cable length | 2-φ4.5*500mm |

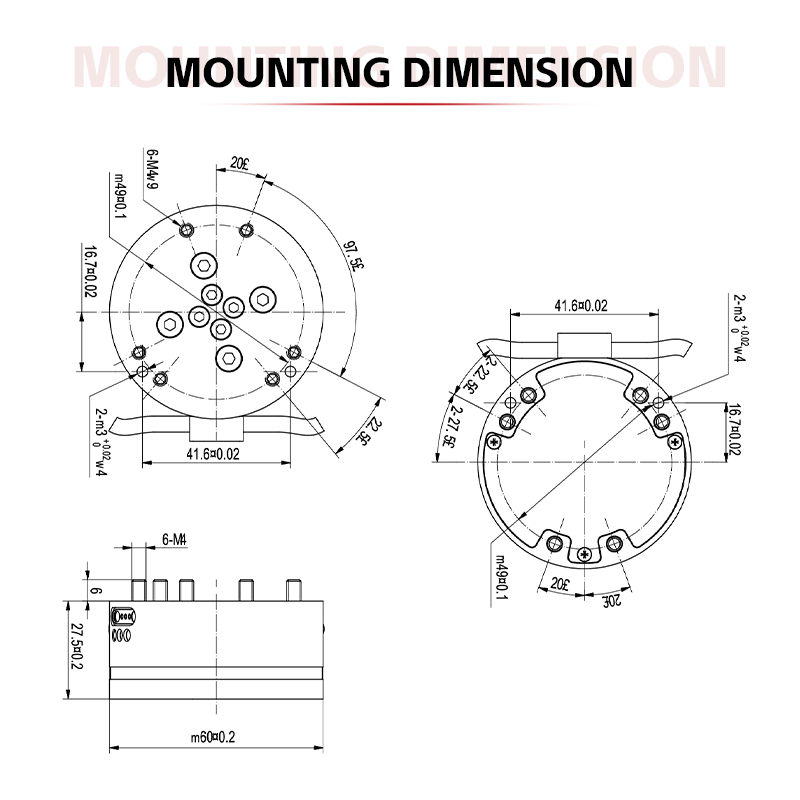

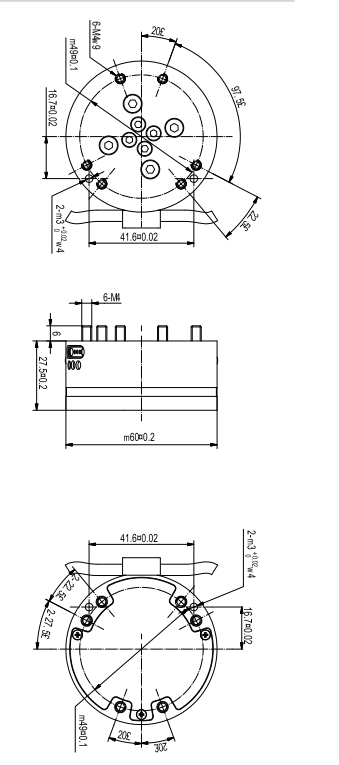

Mounting Dimension

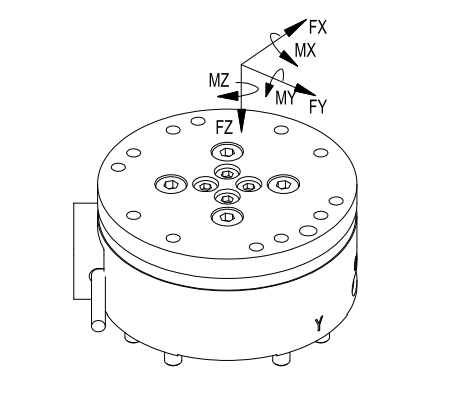

Load Direction
