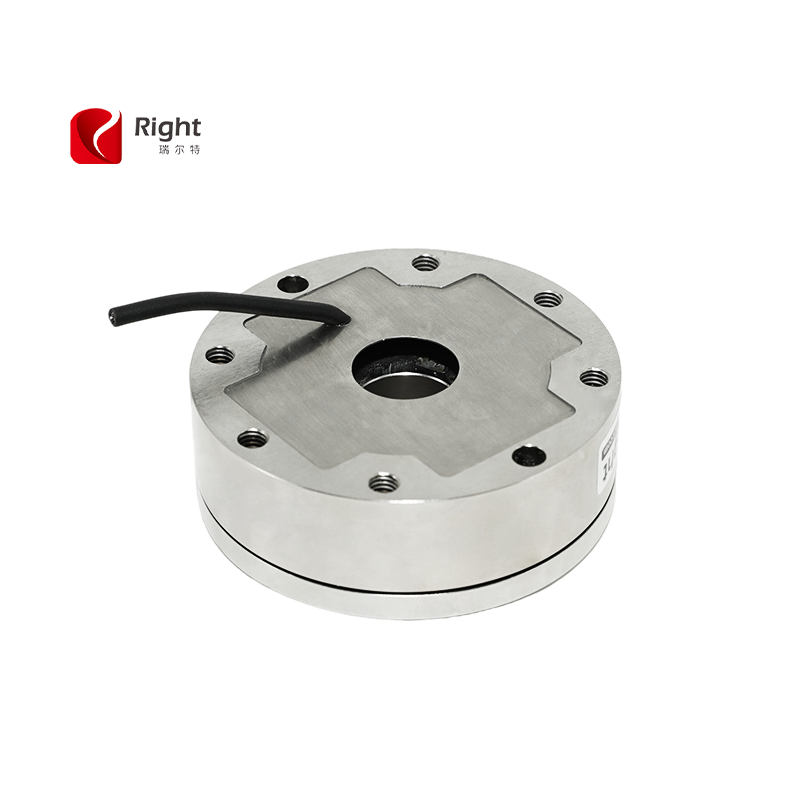

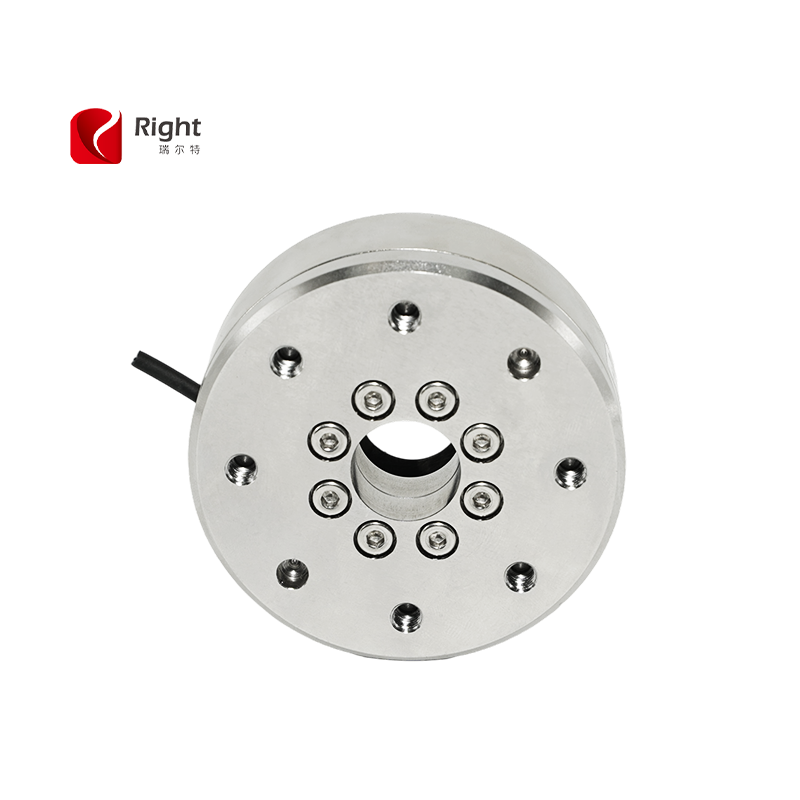

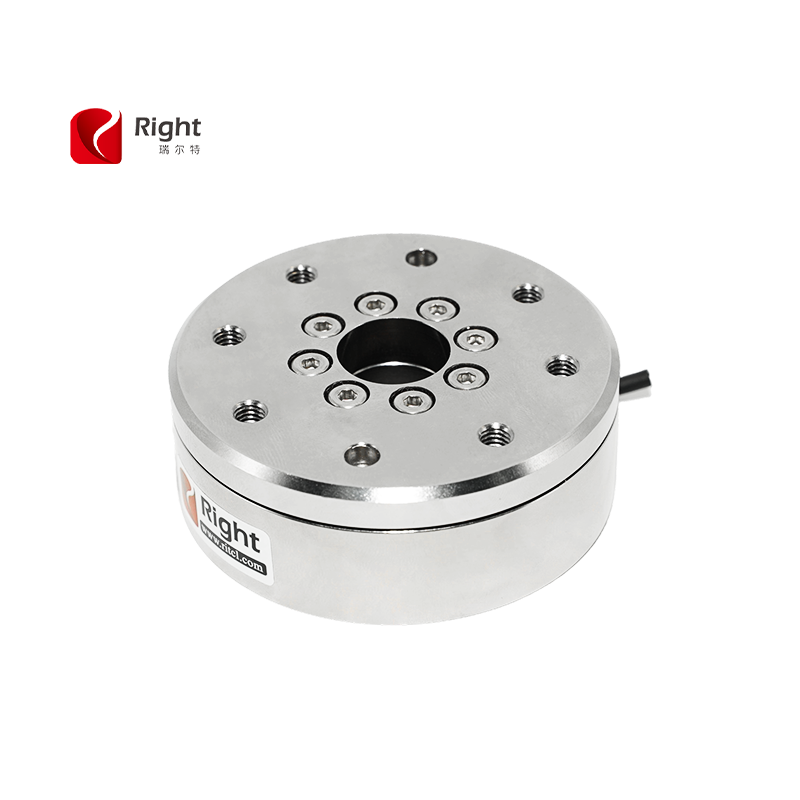

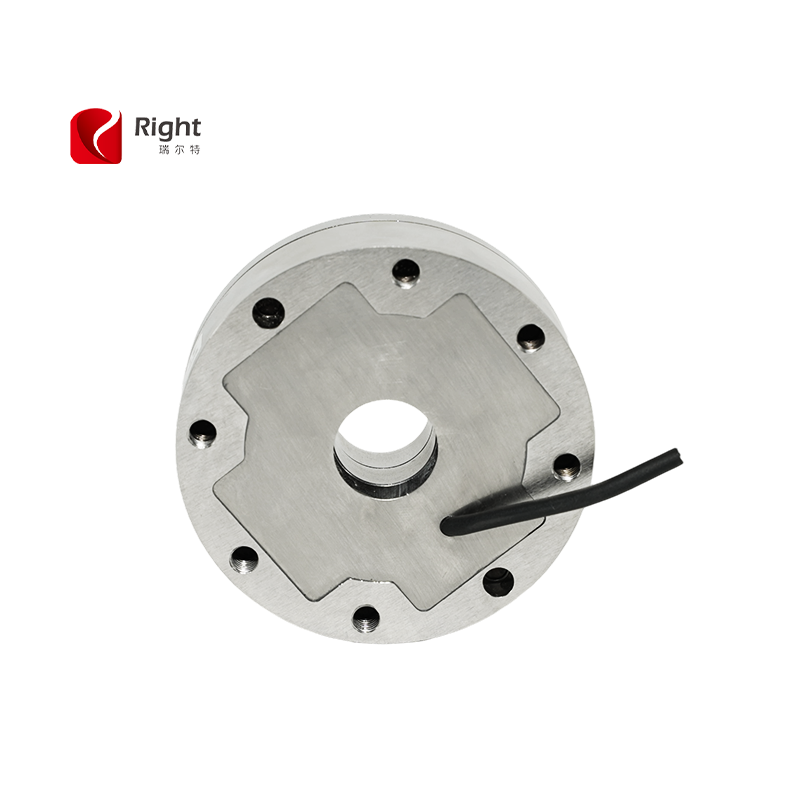

T521J10-360
Right
Multi Axis
IP65
Features & Applications
Stainless steel material, double-sided thread installation
Built-in digital signal output optional
5 times overload
Specifications
Specifications | Technique |
Nominal load | Fz=360N Fx=Fy=200N Mx=Fz=10N. m |
Non-linearity | 1.5%F.S.(Fx/Fy/Fz) 1.5%F.S.(Mx/My/Mz) |
Repeatability | 0.1%F.S.(Fx/Fy/Fz) 0.2%F.S.(Mx/My/Mz) |
Hysteresis | 1.5%F.S.(Fx/Fy/Fz) 1.5%F.S.(Mx/My/Mz) |
Creep(30min) | 0.5%F.S. |
Temp. effect on output | 0.5%F.S./10°C |
Temp. effect on zero | 0.5%F.S./10°C |
Insulation | >5000MΩ/100VDC |
Compensated temp range | -10~60°C |
Operation temp range | -20~80°C |
Ultimate overload | 1000%F.S. |
Cable size | Φ3-900mm |
Power supply voltage | 5VDC |
Protection class | IP65 |
Resolving power | 0.1% |
Baud rate | 1Mbps |

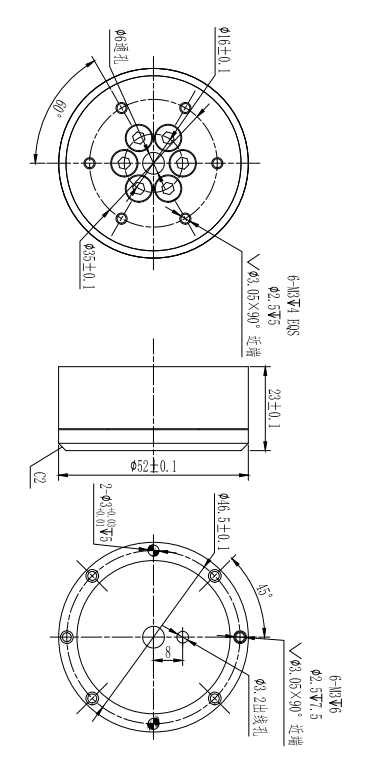

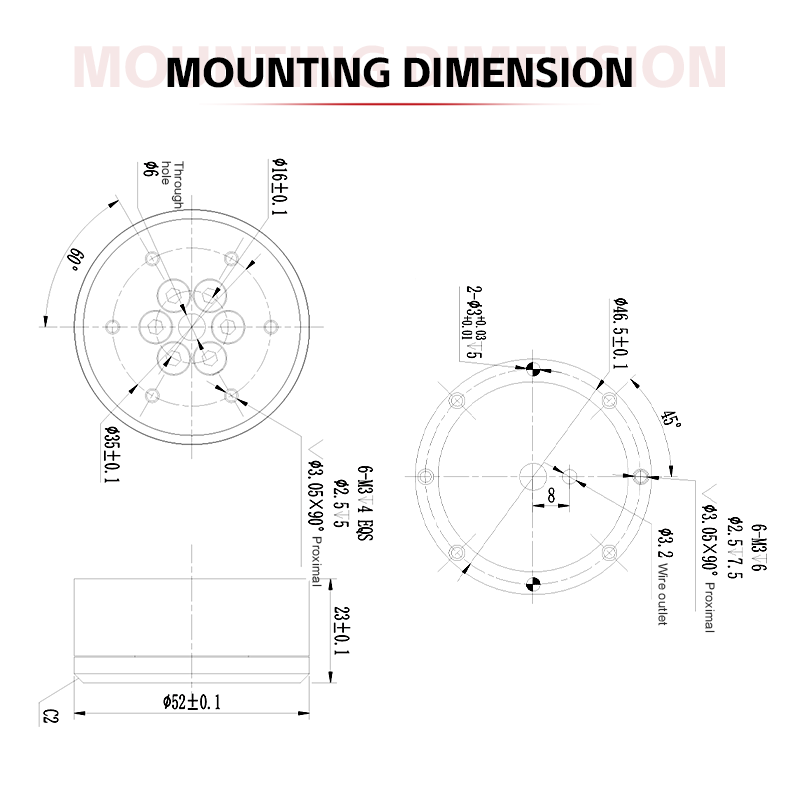

Mounting Dimension

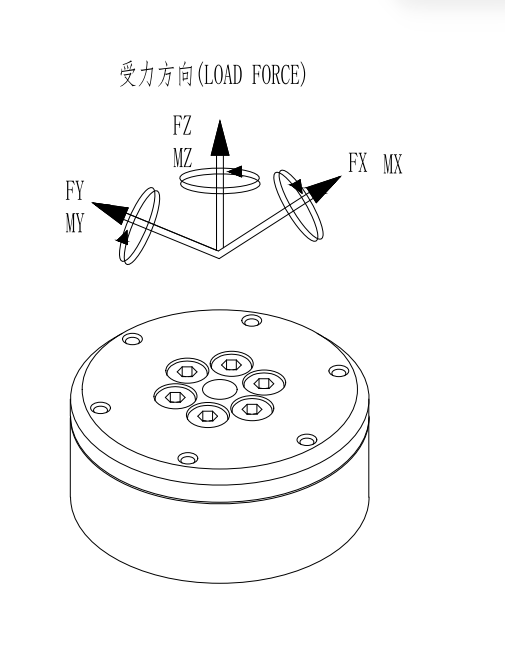

Load Direction
