| Quantity: | |
|---|---|

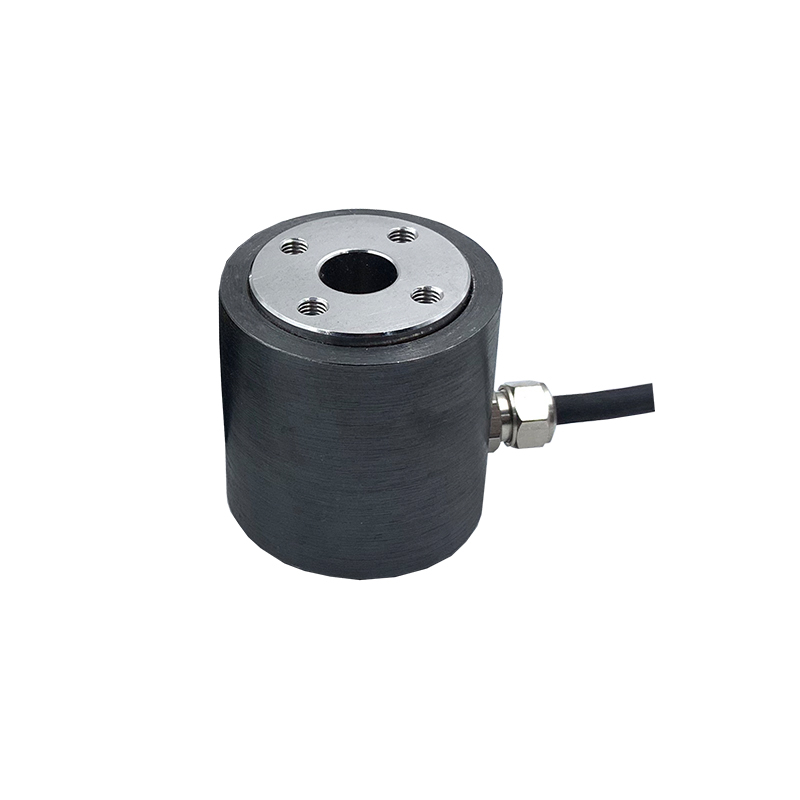

R153E
Right
Compression
1KN ~20kN, 20kN ~
IP67
Features & Applications
Low profile, small deflection and mini dimension
Made of stainless steel, High temperature could be customized
IP67 protection, customizable
Suitable for Automotive preset, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
High dynamic response frequency
Specifications
Specifications | Technique |
Nomial load | 10,20,30,50,100KN |
Rated output | 1.3±20%mV/V |
Zero balance | ±3%F.S. |
Non-linearity | ±0.2%F.S. |
Hysteresis | ±0.2%F.S. |
Repeatability | ±0.2%F.S. |
Creep(30min) | ±0.1%F.S |
Temp.effect on output | 0.1%F.S./10℃ |
Temp.effect on zero | 0.1%F.S./10℃ |
Input impedance | 380±10Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5~15V |
Maximum excitation | 15V |
Compensated temp range | 0-60℃ |
Operating temperature range | -10~150℃ |
Safe load limit | 150%F.S |
Ultimate overload | 200%F.S. |
lP class | IP67 |
Cable size | φ5X5mm |
Specifications | Technique |

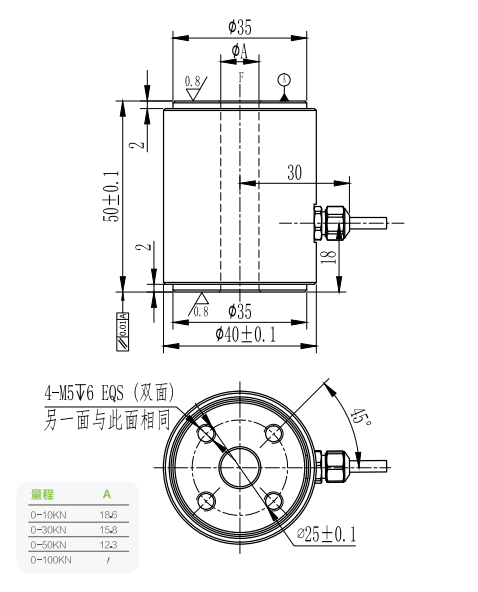

Mounting Dimension

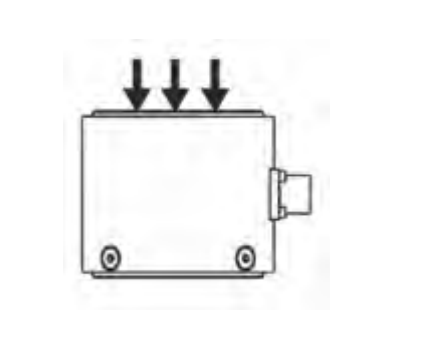

Load Direction

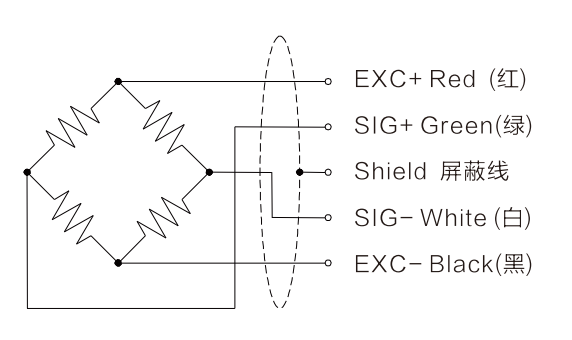

Wiring Code
FAQ
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
Can you send your sensor to my warehouse in guangzhou?
of course，We have good transportation here
How long it takes you to provide the designing options for us?
According to the customer's needs, we will give the plan within three days
