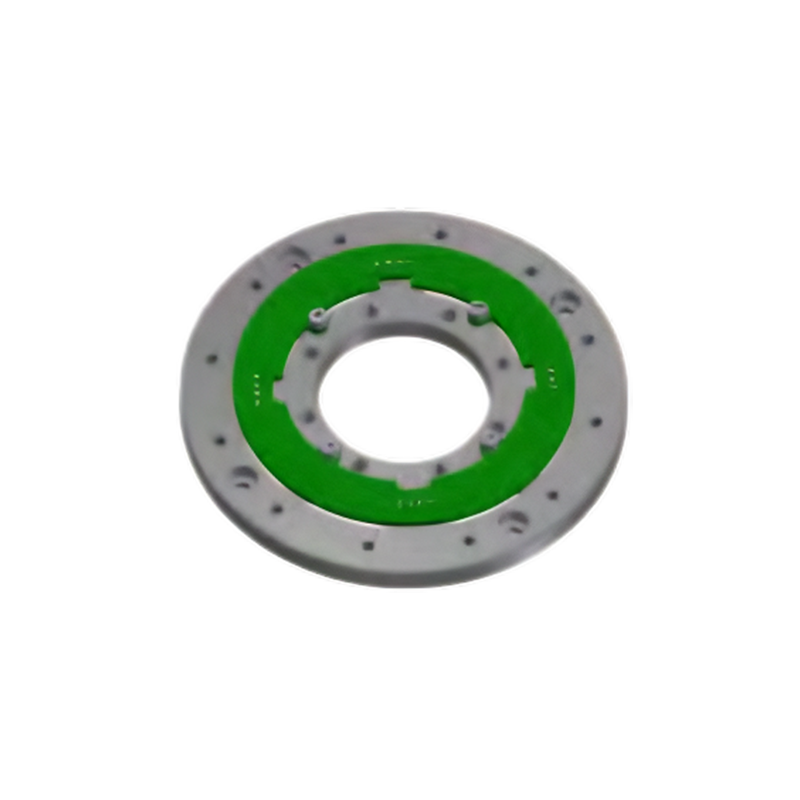

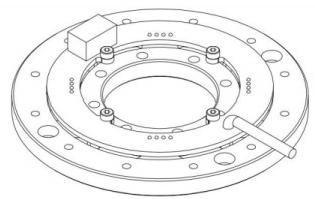

F209W
Right
Torque
IP64
Features & Applications
High accuracy with strong ability of anti-side force.
Easy to install, IP64 protection.
Dimension is customizable.
Precision control of mechanical arm, grinding and polishing for Spherical, carved processing of machining center, precision testing of medical equipment.
Specifications
Specifications | Technique |
Nominal(rated)torque Mnom | 60N.m |
Nominal(rated)sensitivity | can customize |
Zero balance | ±0.03mV/V |
Non-linearity | 1.0%F.S. |
Hysteresis | 1.0%F.S. |
Repeatability | 1.0%F.S. |
Creep(30min) | 1.0%F.S. |
Temp.effect on sensitvty | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Compensated temp range | -10~60℃ |
Operating temperature range | -20-60℃ |
Safe load limit | 120%FS. |
Breaking load | 150%FS. |
lP class | IP64 |
Cable size | φ2-4m |

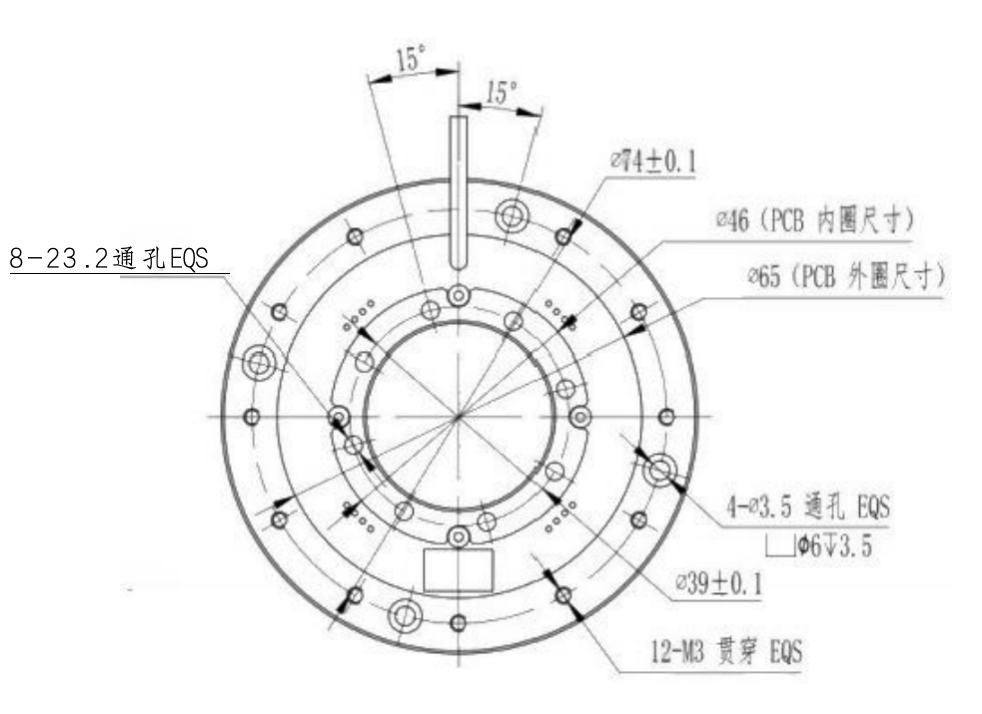

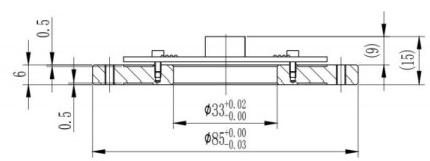

Mounting Dimension

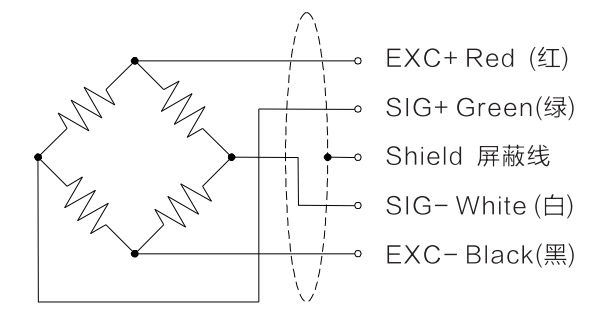

Wiring Code
