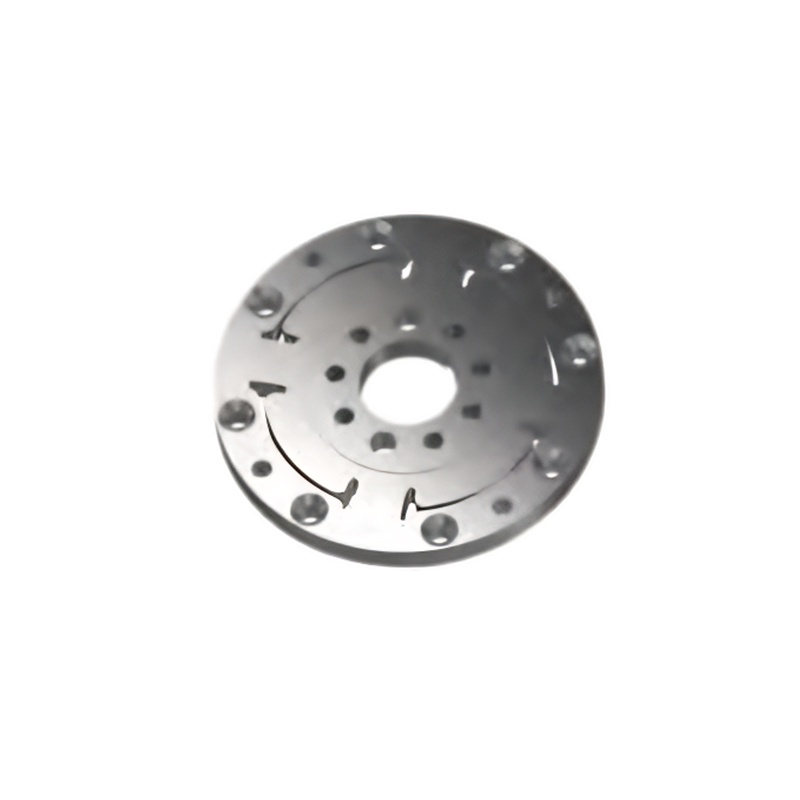

F209N
Right
Torque
IP65
Features & Applications
Static torque sensor.
Compact structure, easy to install.
IP65 protection.
Used for measurement of static, non-continuous rotational torque force.
Specifications
Specifications | Technique |
Nominal(rated)torque Mnom | 100N.m |
Nominal(rated)sensitivity | 2.0±20%mV/V |
Zero balance | ±0.03mV/V |
Non-linearity | 0.2%F.S. |
Hysteresis | 0.5%F.S. |
Repeatability | 0.1%F.S. |
Creep(30min) | 0.1%F.S. |
Temp.effect on sensitvty | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 1000±20Ω |
Output impedance | 1000±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5-12V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operating temperature range | -20-80℃ |
Safe load limit | 150%FS. |
Breaking load | 200%FS. |
lP class | IP65 |
Cable size | φ3x2000m |

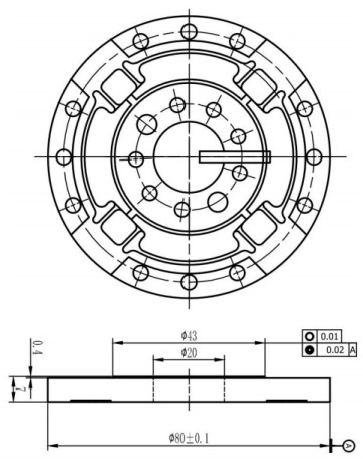

Mounting Dimension
Wiring Code
