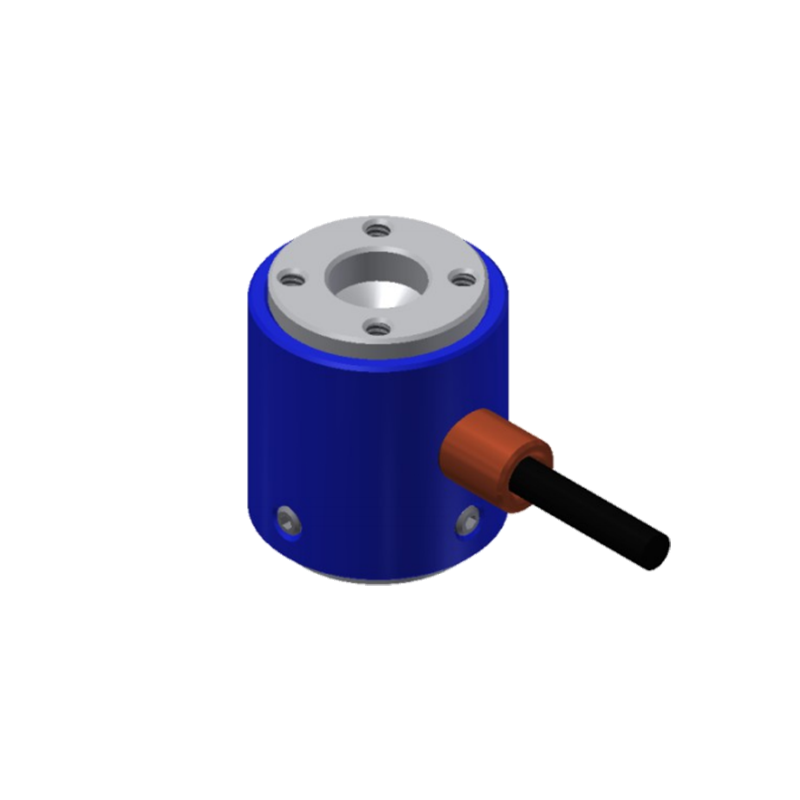

T903F
Right
Torque
IP65
Features & Applications
Specifications
| Specifications | Technique |
| Nomial load | 1N.m,10N.m |
| Rated output | 1.0~1.5mV/V |
| Zero balance | ±3%mV/V |
| Non-linearity | 0.3~0.5%F.S. |
| Hysteresis | 0.3~0.5%F.S. |
| Repeatability | 0.2~0.5%FS. |
| Creep(30min) | 0.2~0.5%FS. |
| Temp.effect on sensitvty | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 1100±20Ω |
| Output impedance | 1000±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operating temperature range | -20-90℃ |
| Safe load limit | 150%FS. |
| Breaking load | 200%FS. |
| lP class | IP65 |
Mounting Dimension
Load Direction
Wiring Code
FAQ
Do you provide sample? Free or charge?
We provide samples, but since the cost of our sensors is relatively high, we can bear the cost together. The customer pays the sample cost, we can bear the freight for the customer
What is your MOQ?
The MOQ is usually 5 to 10 pieces
Are you a trading company or a manufacturer?
Our company is a high-tech manufacturer which dedicated in developing, manufacturing and sales of high-end load cell, tension sensor, and all kinds of non-standard sensors.
How long is your delivery time?
4-6 weeks, depending on the situation
What are your terms of packing?
Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
What is your terms of payment?
T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CFR, CIF.
How about your delivery time?
Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
