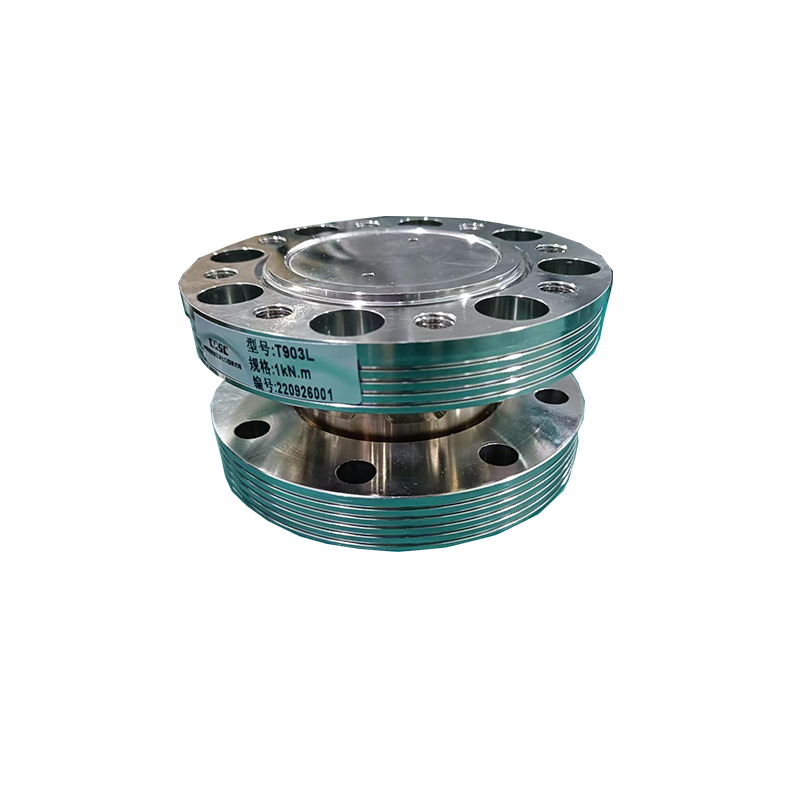

T903L
Right
Torque
IP66
Features & Applications
Static torque sensor.
Compact structure, easy to install.
IP65 protection.
Used for static,non-continuous rotational torque force measurement.
Patent Products, can not be copied.
Specifications
| Specifications | Technique |
| Capacity | See the table for details |
| Sensitivity | 1.0±20%mV/ |
| Zero balance | ±3%mVV |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Creep(30min) | 0.03%F.S. |
| Temp.effect on sensitvty | 0.03%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 1000±20Ω |
| Output impedance | 1000±20Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operating temperature range | -20~80℃ |
| Safe load limit | 120%FS. |
| Breaking load | 150%ES. |
| Cable | φ4/φ6×3m |
| IP Class | IP66 |
Mounting Dimension
Load Direction
Wiring Code
