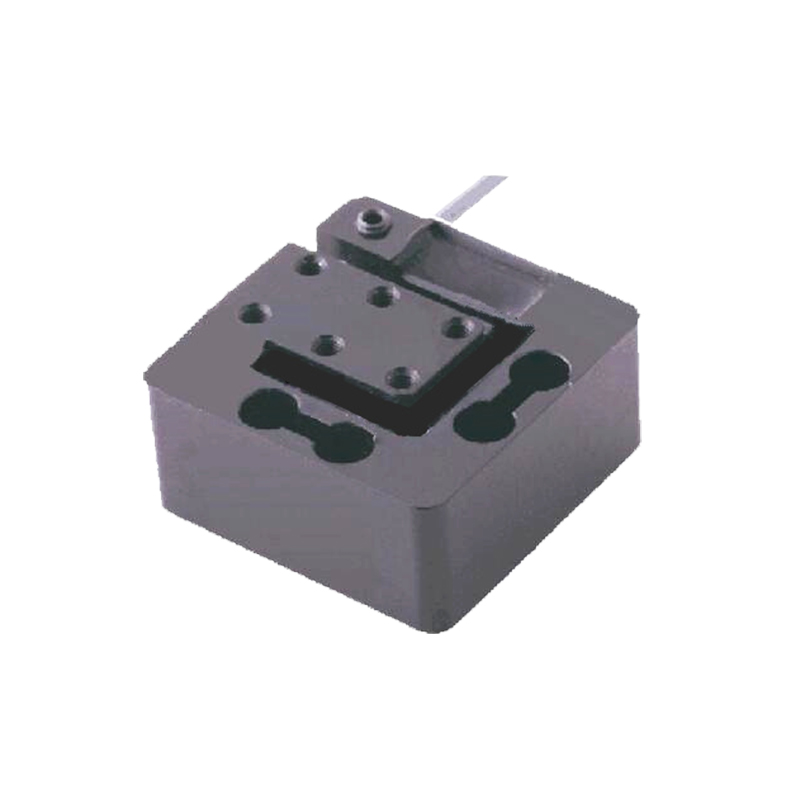

3 Axis Force Sensor T502

3-Axis Force Sensor allows quick and straightforward installation. Flexible customized specifications including measuring range, dimension, signal output and mounting interface are available to meet varied industrial requirements. It serves as a reliable force feedback unit for robotic arm precision control, adaptive curved surface grinding and polishing, precision carving on machining centers, and high-accuracy precision testing of medical equipment. Capable of real-time three-dimensional force monitoring, it delivers stable measurement performance in complex automated processing and precision detection scenarios.

Availability:

Quantity:



Inquire Add to Basket

Model:
T502
Brand:
Right
Load Direction:
Multi Axis
Capacity:
1N~100N
IP Class:
IP66

Product Description

Dimension

t502

Parameters

Specifications	Technique
Capacity	X: 5/10/20/30/50 Y: 5/10/20/30/50 Z: 5/10/20/30/50
Sensitivity	≈1.0 mV / V
Zero Balance	± 2% F.S.
Non-linearity	0.2% F.S.
Hysteresis Error	0.2% F.S.
Repetition	0.2% F.S.
Interference error	0.5% F.S.
Creep (30 min)	0.2% F.S.
Temp. Effect on sensitivity (TKc)	0.1% F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.1% F.S. / 10 ℃
Input Resistance	350 ± 10 Ω
Output Resistance	350 ± 10 Ω
Insulating Resistance	≥5000 MΩ / 100VDC
Excitation Voltage	5 ~ 12 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 40 ℃
Service Temperature Range	-20 ~ 75 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	300% F.S.
Cable Size	φ3x4000 mm
IP Class	IP66

Features and Applications

High precision and strong anti-eccentricity

Easy to install, IP66

Accept custom specifications

Precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, precision testing of medical equipment

Load Direction

t504-2
