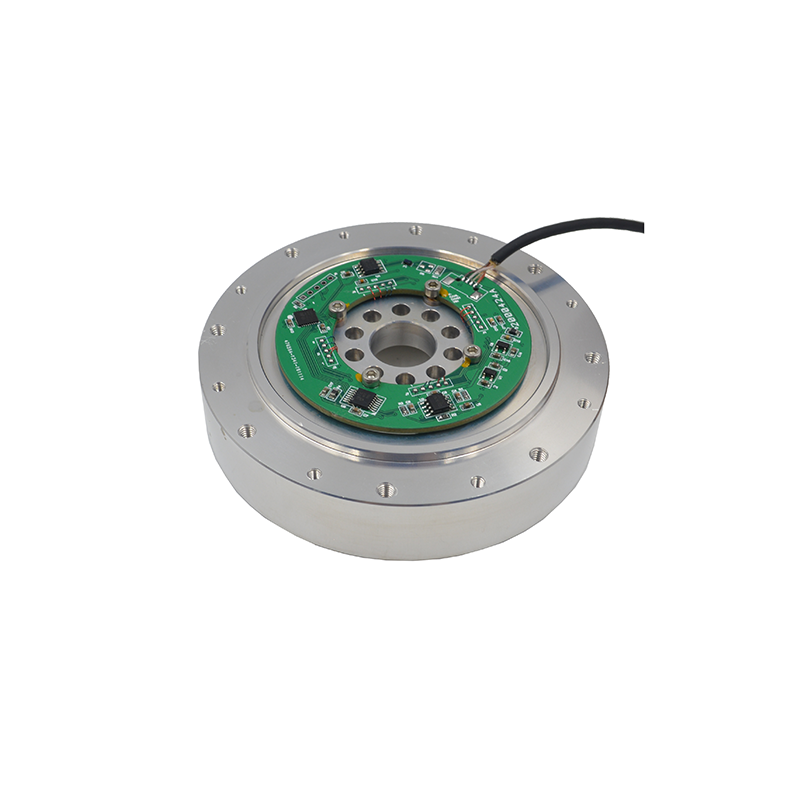

F209K
Right
Torque
IP65
Features & Applications
High precision, strong resistance to unbalanced load
Easy installation, IP65, accept customized specifications
precise control of robot arms, curved surface grinding and polishing,precision carving processing in machining center, precision testing of medical equipment.
Specifications
Specifications | Technique |
Nominal(rated)torque Mnom | 70N.m |
Nominal(rated)sensitivity | can output |
Zero balance | ±0.05mV/V |
Non-linearity | 0.3%F.S. |
Hysteresis | 0.3%F.S. |
Repeatability | 0.2%F.S. |
Creep(30min) | 0.2%F.S. |
Temp.effect on sensitvty | 0.05%F.S./10℃ |
Temp.effect on zero | 0.05%F.S./10℃ |
Input impedance | 2000±20Ω |
Output impedance | 2000±10Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5-12V |
Maximum excitation | 15V |
Compensated temp range | -10~60℃ |
Operating temperature range | -20-80℃ |
Safe load limit | 150%FS. |
Breaking load | 200%FS. |
lP class | IP65 |
Cable size | φ3-4m |

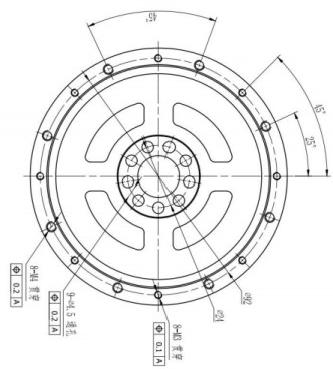

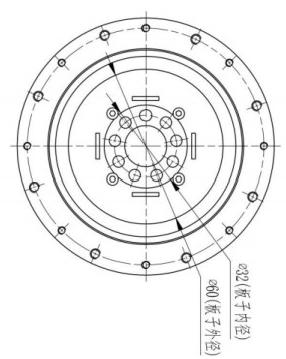

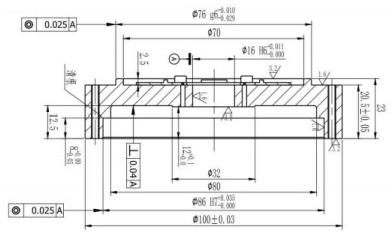

Mounting Dimension
Wiring Code
